Home ProductsTwo Post Parking Lift

Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift

Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift

China Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift supplier

Large Image :  Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-8023; QDMY-8027; QDMY-8032

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1500-2200/Set
Packaging Details: Standard Export Package
Delivery Time: 20-30days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Detailed Product Description

Product Specifications:





Brand Name  STMY
Model No.

 QDMY-606L, QDMY-606H, QDMY-606N,

 QDMY-607, QDMY-607N,

Type

 Two Post Double Parking Car Lift

 (can be independant or dependent with shared posts)

Mode of Operation  Manual control buttons / Keys
Car Weight

 ≤2700kg;  ≤2200kg

Car Size (L/W/H)

 5000mm×1850mm×1550mm (Sedan)

 5000mm×1850mm×2050mm (Suvs)

Mode of Drive

 Hydraulic +Chain

Rise Speed

 1.7m/min

Fall Speed  1.9m/min
Motor Power  2.2KW

Working Voltage

 220V/1Ph, 380V/3Ph (according to user's  demand)
Lifting Height

 QDMY-606L:   1600 & 1800mm (adjustable);

 QDMY-606H :  1650 & 2100mm (adjustable);

 QDMY-606N:   1000 to 1800mm (adjustable)

 QDMY-607:     1600 & 1840mm (adjustable);

 QDMY-607N:   1600 & 1840mm (adjustable)

Safeguard Device     Fixed anti-fall lock warning devices
Lifting Mode

 Dual smart cylinders

Car Platform Thickness                           ≥2.0mm
Outer Size   Please see below dimensions
Machine Weight  ≤1100kg
Surface Treatment

 High-grade anti-corrosion spray paint or hot galvanized

Color

 Red, Blue, Grey, Yellow etc. ( customized according to

 user demand )

Certification  ISO9001 and CE



Actuating Device:



Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet





Working Principle:



 There are 2 levels of upper and down spaces. The car can go in and out of the down level space directly. When the space in the down level is spared, the space in the upper level will be lifted down to ground. Then the car will go out and in freely.




Characteristics:
  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use
  • Can be sharing posts design
  • Optional ultrareds ray alarm device




 Application:



Widely Using in Residential Area, Basement Parking Lot, School, Hotel, Office Buildings, etc...

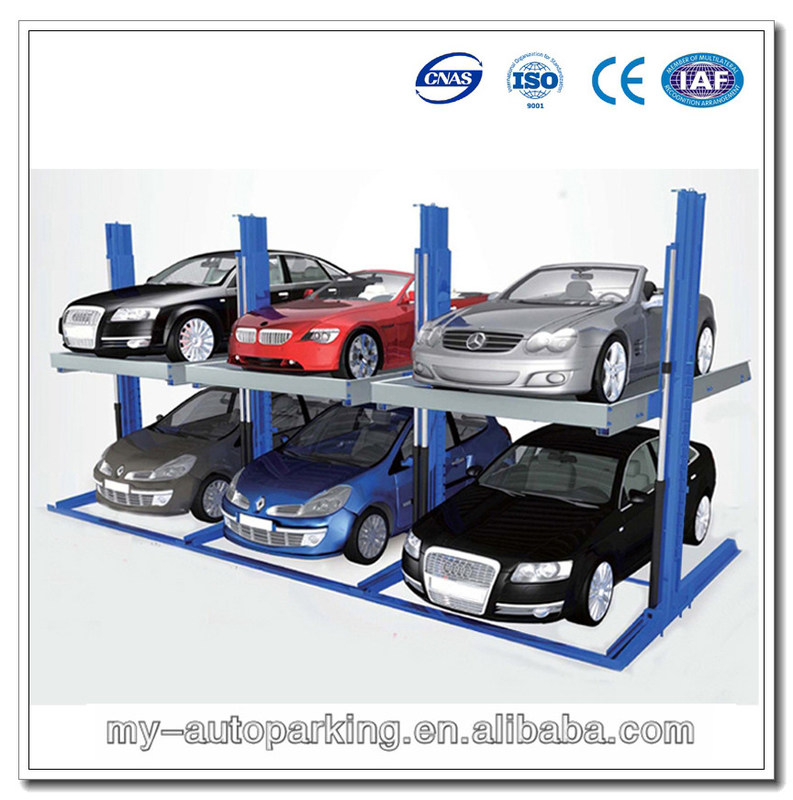

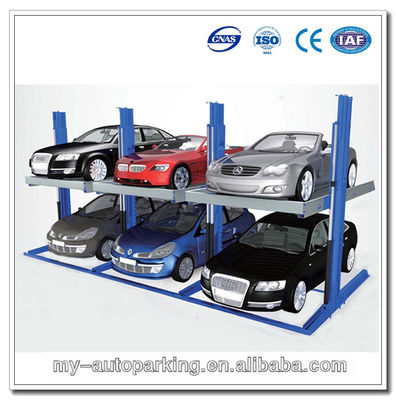

Pictures:







Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift







Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift





Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift







Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift









Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift





Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



Online video Show at youtube:



http://youtu.be/4VA67AwriFU





Dimensions:

Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



(Give us your land size, we can make design for you!)





Shipping Information:





1. 18 units into 1x40'HQ container;



    24 units into 1x40'HQ container (if sharing columns)



Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift



Car Parking Lifts Car Park System Car Parking Solutions Cantilever Car Parking Lift







FAQ

 1.  What trade term you can accept?

----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).



2.   What payment term can you accept?

----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...



3. How about the loading information and HS Code?

---For this model, 18 or 24 units can be loaded into 1x40'HQ container;
---The HS code is 842890000

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowdegye;

8. How about the installation?
--This model of product is simple structure, usually we send installation drawings to the client, and they can install it themselves.

9. Can you install for us?
--We can send our engineer to your country to guide the installation. But your party need to find  local workers to do the installation work.
