Home ProductsFour Post Pit Parking System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

China 2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System supplier

Large Image :  2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO & CE
Model Number: QDMY-UPS-1, QDMY-UPS-2

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $6000-6500/ per car space
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 100 sets/month
Detailed Product Description
Product Name: Pit Desgin Car Parking Lift Mode Of Drive: Hudraulic
Car Numbers: 2 Or 3 Nos. Car Types: Sedans Or SUVs (Customized)

Product Specifications:

Brand Name STMY
Model No.

QDMY-UPS-1, QDMY-UPS-2

Type Pit Desgin Car Parking Lift
Mode of Operations Manual buttons/Keys
Car Capacity ≤2000kgs; 2500kg; 3000kg (Customized)
Mode of drive Hydraulic
Car Size (L×W×H)

5000mm×1850mm×1550mm
5000mm×1850mm×2050mm

5300mm×1900mm×2100mm

Platform Size (LxW)                                    5500mm x 2800mm (Customized)
Lifting Height 1600-2200mm (Customized)
Safeguard device Whole protection and anti-falling device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity

110v 220V/240V/380V
(customized for different country)

Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint or Hot galvanized
Color

Red, Blue, Grey, Yellow etc.
(customized according to user demand )

Certification ISO9001 and CE



Working Principle:

The spaces of upper and bottom are united and lifted together. Usually, the bottom level car is

underground in the pit. The top level car is in the same line with the ground. The top level car can park in and out directly. When the system is lifted up, the bottom level car can be driven in or out easily.



Description:

1. Hydraulic driven and double chain balance system, smooth operation, higher safety factors.

2. Fully utilization of underground space, no steel structure above ground, simple and graceful.

3. Galvanized wave plates or diamond plate platforms (optional), cold bending and strong pressure & humidity resistance.

4. Electroplating or hot dipped galvanized surface treatment (optional).

5. Multiple mechanical locks for anti-falling protection device.

6. Adding photoelectric sensors to detect unexpected people or vehicles entering by mistake during the system under operation.

7. Mold machining through the whole process so that the parts are universal and interchangeable.

8 Pass 120% capacity dynamic load text and 150% static load test.

9. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop.

10. Flexible design according to customer requirements, suitable for different car types..



Adapted places:

Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center etc...



Pictures:
2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

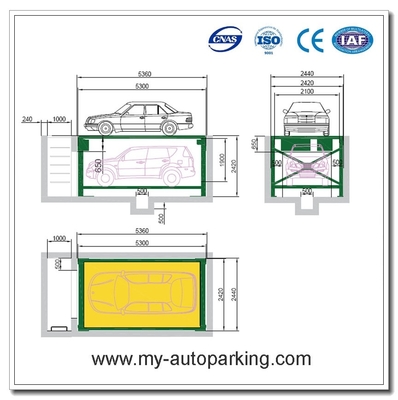

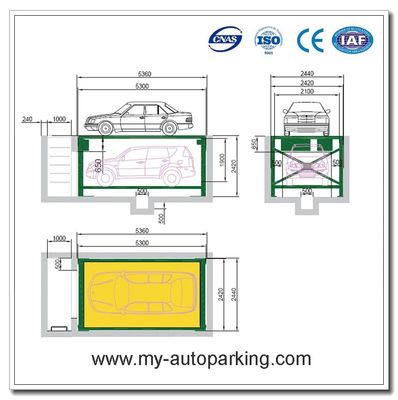

Sample Drawings:
2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System

2 or 3 Undground Car Parking Lift Suppliers/Garage Car Stacker Lift/Parking Car Storage/Carpark System


Remark: The car types, lifting weight can be customized according to customers' request.
