Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

China Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder supplier

Large Image :  Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: SJD0.3-3.0, SJD0.3-6.0

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $4000-6000/ per set
Packaging Details: Plywood Wooden Box
Delivery Time: 5-20 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Sets/month
Detailed Product Description
Product Name: Disabled Lift Material: Wheelchair Lift

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder



Product Specifications:

Brand Name STMY
Model No.

SJD0.3-3.0, SJD0.3-6.0

Mode of Drive

Hydraulic & Chain

Loading Capacity 200kg, 300kg

Platform size

1200*800mm

Travelling height

3000mm, 6000mm (Customized)

Stops

2 or 3

Motor power

1.5KW or 2.2KW , 220V/AC

Operation Method

Manual Buttons on Each Floor

Lifting speed

4-6m/min

Lowering speed

Adjustable

Platform

Anti-skid diamond plate

Surface materials

Steel or Stainless steel (Optional)

Working environment

Indoor and outdoor

Working temperature

-10℃~50℃

Safety Device

Bottom safety touch panel, Anti-falling protection, Emergency stop,Manual release method

Color

White, Black, Grey ... (Customized)

HS Code

84281010

Certification

ISO9001 and CE

Warranty

12 months, life paid maintenance service



Introduction:

Barrier-free lifts are specially designed and manufactured for the disabled or the elderly.

They can accommodate wheelchair vehicles, and are suitable for home or public occasions. The barrier-free lifts, vertical lifts, seated lifts, inclined wheelchair barrier-free lifts, can be installed in subway entrances, underground sidewalks, footbridges, railway station entrances, residential building corridors, the middle corridor of buildings can perfectly solve the problem of difficulty in lifting in public places. This product does not require pits and machine rooms, no noise, no land restrictions, no need for frequent repairs and maintenance, safe and reliable.



Working Principle:

The small lift is driven by hydraulic pressure. It is an elevator that presses the oil into the cylinder to make the plunger move linearly through the hydraulic power source, and indirectly moves the car through the chain and wire rope. The hydraulic lift is an integrated product of machine, electricity, electronics and hydraulic pressure, and is composed of the following relatively independent but interconnected and coordinated systems. Pumping station system, hydraulic system, guidance system, car, door system, electrical control system, safety protection system. (Household hydraulic villa elevators are generally opened manually).



Product Advantages:

1. Running indicator: when running, the running indicator lights to remind.

2. Overload protection: The main and auxiliary nuts rely on the transmission, and the joint control operation for anti-fall protection.

3. Emergency stop: the device brakes immediately after pressing the emergency stop button in the running state.

4. Security lock: key switch, which can lock the device and cannot run.

5. Emergency manual lifting device: In an emergency, the platform can be raised/lowered by manual.

6. Obstructed protection device: during the operation of the platform, it should be able to stop operation immediately when encountering obstacles.

7. Anti-collision function: the bottom plate can automatically detect displacement and suspend the operation of the equipment to ensure.



Application:

Public places such as communities, hospitals, schools, hotels, hotels, tourist escalator passages, residential, etc.

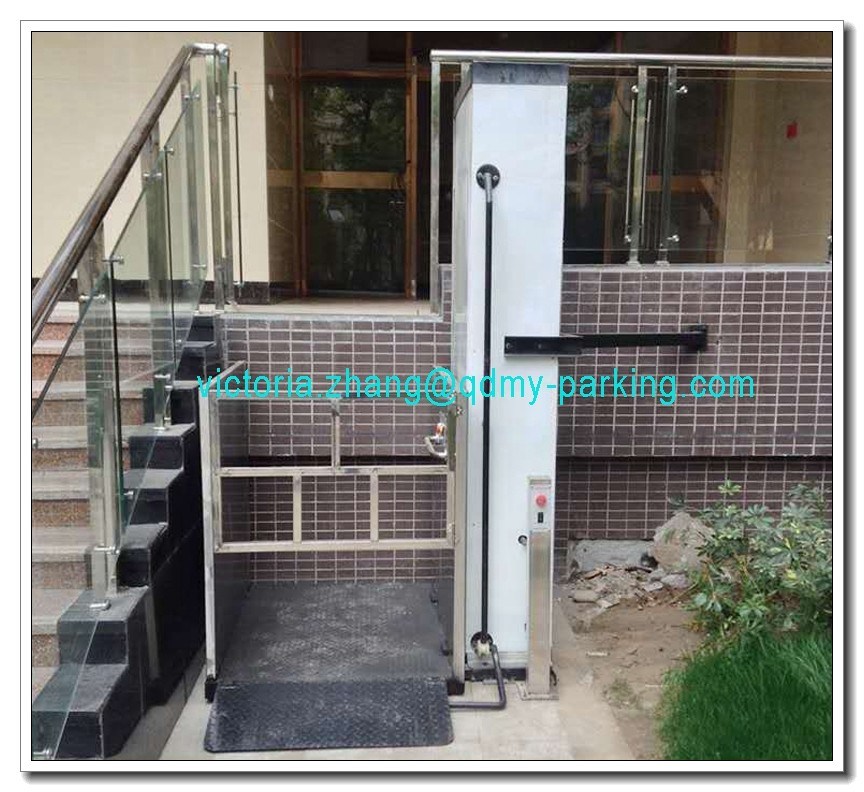

Pictures:

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Drawings:
Outdoor Handicapped Wheelchair Lifts for Stairs/Disabled Lift for Elder

Remarks:

1. The structure is usually steel structure with spray paint surface treatment (color optional).

2. If choose stainless steel material, the unit price is more expensive.

3. If choose silent pump station, the unit price is more expensive.

4. The platform is usually customized according to customer request.

5. Usually can do 2 lifting heights, 3 meters or 6 meters, but can be customized.



FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---100%TT in advance for sample order (1-3 sets)

---30%TT in advance, and 70%TT before shipping.


3. What is the package into container.

---wooden case.



4. What is the HS Code?

---The HS code is 84281010



5. How about the lead time?
---5-20 days (depends on order quantity)

6. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.
