24. 5-15 Floors Round Smart Parking System

24. 5-15 Floors Round Smart Parking System

China 24. 5-15 Floors Round Smart Parking System supplier

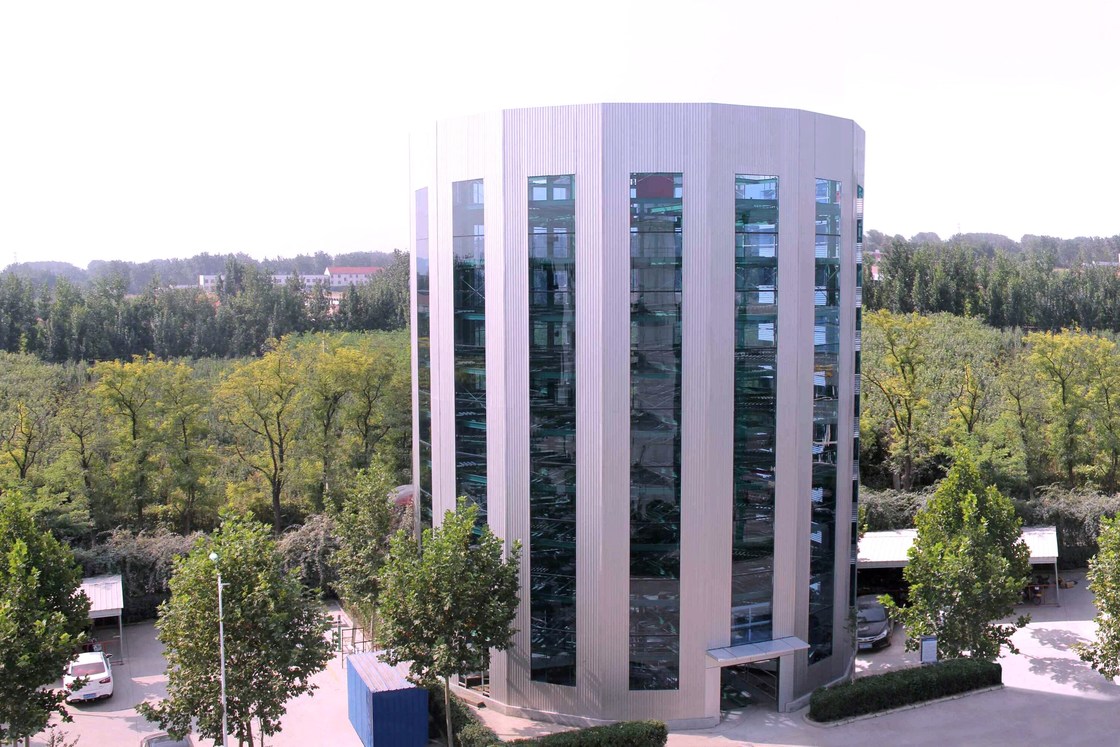

Large Image :  24. 5-15 Floors Round Smart Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: QDMY-RP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2800-5000/Per car slot
Packaging Details: Standard Export Package
Delivery Time: 60-90 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Car slot/month
Contact Now
Detailed Product Description

Product Specifications

Brand Name STMY
Product Name

Fully Automatic Round Parking System

Model No. QDMY-RP (5-15 Floors)
Mode of Operation LCD /IC card/ Touch Screen
Mode of drive

Hydaulic & Wire Rope

Motor& Wire Rope

Car Capacity ≤2350kg
Car Size (L×W×H)

≤5300x1900x1550(mm)

≤5300x1900x2050(mm)

Lifting Speed 30-42m/min
Access Speed 42m/min
Rotation Speed 3.0r/min
Safeguard devices Whole protection
Malfunction indication Fault diagnosis code, liquid crystal display
Car platforms Comb pallet with dust boards
Other Parts Treatment Spray Zinc firstly and then Spray-paint second time (Twice)
Colors Grey, Apple Green, Peacock blue (optional)
Power Supply 380V/50Hz ; 3Phase 5wire

(Customized for different country demand)

Workig noise <70dB
HS Code 84289020
Warranty Term

12 months for electrical key parts,

5 years for structure

Certification

ISO9001 and CE



Working Principle:

1) The garage is a cylinder layout, the structure is divided into inner and outer cylinder. The inner cylinder is for the hoistway, integrated lifting platform, rotary system, leveling system and carrier. The outer cylinder is for car berths radically arranged. Each floor can be set 6, 8,10 or12 nos. of parking spaces and can be built up to 5-15 floors. The system can be arranged all above ground, all underground or half above ground & half underground. The entrance and exit room can be set flexible in the ground floor or other floors for one or more; can be combined use with elevator. When parking a car, the carrier will carry the car from the entrance room to lifting platform, the lifting and rotation process are synchronization completed in hoisway and arrive to the designed car berth.



2)When storing a car, just need to drive the vehicle to the car storage platform of entrance. Then swipe the card, the intelligent handling trolley will automatically move the vehicle to the designated position. When picking a car, choose to swipe card or mobile phone APP operation, the intelligent handling trolley will automatically move the vehicle to exit parking space, and the driver will take the car out without reversing.



3) This vertical lifting parking system is a totally closed intelligent parking garage, stable handling platform, advanced comb-tooth exchange method, high-efficiency action of lifting, traversing and rotation, the whole process is simple to operate, the operation efficiency is high, and the maximum access car time is only 90 seconds. Compared with traditional semi-automatic garages, it can realize mobile phone APP reservation access, license plate recognition, empty parking space indication,

vehicle in-position display, automatic centering, and parking space timing charging.



Adapted Places:

Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...



Major Components:

The equipment consists of six major components, including Steel Structure, Car Lifting & Turning System, Handling Carrier, an Access Platform, Electrical System and Operating system.

24. 5-15 Floors Round Smart Parking System


Case Photos:

24. 5-15 Floors Round Smart Parking System

24. 5-15 Floors Round Smart Parking System

24. 5-15 Floors Round Smart Parking System

24. 5-15 Floors Round Smart Parking System



24. 5-15 Floors Round Smart Parking System

24. 5-15 Floors Round Smart Parking System



Sample Drawings:

24. 5-15 Floors Round Smart Parking System

Important Tips:

1) Can do 5 to 15 floors.

2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

3) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

4) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 8 car spaces can be loaded into 1x40'open top container;
---The HS code is 84289020

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.



9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.
