22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System

China 22. 8-35 Floors Tower Parking System supplier

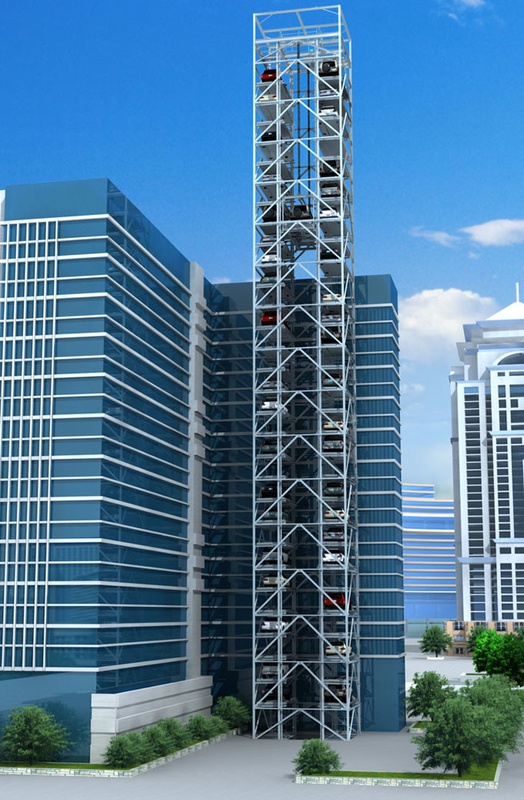

Large Image :  22. 8-35 Floors Tower Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: PCS8-35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $4500-6500/Per car slot
Packaging Details: Standard Export Package
Delivery Time: 30-60 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Car slot/month
Contact Now
Detailed Product Description

Product Specifications

Brand Name STMY
Product Name Tower Parking System (8-35 Floors)
Model No. PCS (8-35 Levels)
Mode of Operation LCD /IC card/ Touch Screen
Mode of drive

Hydaulic & Wire Rope (8 to 15 levels)

Tractor & Motor (8 to 35 levels)

Car Capacity ≤2350kg
Car Size (L×W×H)

≤5300x1900x1550(mm)

≤5300x1900x2050(mm)

Lifting Motor Power/ Speed 22-30KW / 70-120m/min
Sliding Motor Power/ Speed 0.2 KW/ 9.5m/min
Rotation Motor Pwer/Speed 2.2 KW / 3.0 rpm
Safeguard devices Whole protection
Malfunction indication Fault diagnosis code, liquid crystal display
Car platforms Comb pallet with dust boards
Other Parts Treatment Spray Zinc firstly and then Spray-paint second time (Twice)
Color Grey, Apple Green, Peacock blue (optional)
Power Supply 380V/50Hz ; 3Phase 5wire

(Customized for different country demand)

Workig noise <65dB
HS Code 84289020
Warranty Term

12 months for electrical key parts,

5 years for structure

Certification

ISO9001 and CE



Working Principle:
The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong hydraulic or tractor motor fast drive mode.



Characteristics:

It is safer and more reliable using hydraulic or tractor drive;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons or touch screen;

Saving energy and environmental protection;

Fashionable and elegant appearance will be easily in harmony with surrounding environment;


Adapted Places:

Residential parking lot, apartment,public parking place, hotels, shopping mall, commercial center etc...



Online Video Show:

https://youtu.be/AvfuzYJ7CxQ

https://youtu.be/MXBUKaIM9GA

https://youtu.be/d0JKv_Eg0Lo


Pictures:

22. 8-35 Floors Tower Parking System
22. 8-35 Floors Tower Parking System

 22. 8-35 Floors Tower Parking System
 22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System
22. 8-35 Floors Tower Parking System
22. 8-35 Floors Tower Parking System
22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System
 22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System

22. 8-35 Floors Tower Parking System


Sample Drawings:

 22. 8-35 Floors Tower Parking System

  22. 8-35 Floors Tower Parking System



  22. 8-35 Floors Tower Parking System

Important Tips:



A: Hydraulic & Wire Rope Fast Drive Mode

1) Can do 8 to 15 floors only, it is fast running speed.

2) Can do 3 wides, 4 wides, 5 wides and maximum 6 wides if land size is wider enough.

3) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

4) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

5) The car turntable at ground level is an optional, its function is to rotate in 360 degree to adjust car head for customer. If add it, each car space will be +USD350 more expensive and will lose 2 parking spaces.

6) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).



B: Motor Traction & Wire Rope Very Fast Drive Mode

1) Can do 8 to 35  floors,  it is very fast running speed.

2) Can do 3 wides only for each tower system.

3) Can do all steel structure (we provide), or mixed steel & concrete structure.

(we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

4) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

5) Usually it has a car turntable at ground level to adjust car head for customer, and will lose 2 parking spaces at ground level.

6) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).



C: Conclusion:

1) For 8-15 floors, hydraulic drive mode is a better option.

2) 16-35 floors, motor traction drive mode is a better option.

3) Ask customer to provide the land layout, we can make design and provide the best parking solution for customers.



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 8 car spaces can be loaded into 1x40'open top container;
---The HS code is 84289020

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.



9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



Note: For more information, send email to: victoria.zhang@qdmy-parking.com
