21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

China 21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2 supplier

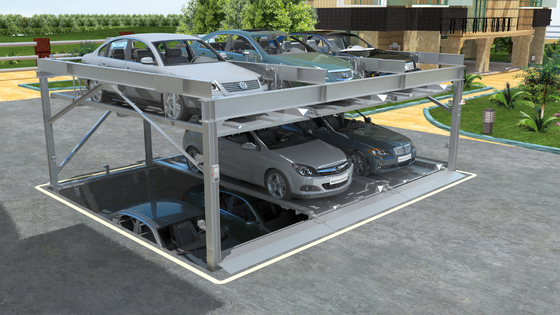

Large Image :  21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: PSH-1+1, PSH-1+2, PSH-2+2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2400-2500/per car space
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 car spaces / month
Contact Now
Detailed Product Description

Specifications

Brand Name STMY
Product Name Pit Design Puzzle Parking System
Model No. PSH-1+1, PSH-1+2, PSH-2+2
Mode of Operation IC card/Manual buttons
Mode of drive

Motor and Chain for PSH-1+1, PSH-1+2

Hydraulic for PSH-2+2

Car Capacity ≤2000, 2500kg
Car Size (L×W×H)

≤5000x1850x1550(mm)

≤5000x1850x1950(mm)

Lifting Motor Power/ Speed 2.2 KW / 4-6 m/min
Sliding Motor Power/ Speed 0.2 KW/ 7-8m/min
Power Supply 380V/50Hz ; 3Phase 5wire

(Customized for different country demand)

Safeguard devices Whole protection and anti-falling hook
Malfunction indication Fault diagnosis code, liquid crystal display
Car platforms Galvanized wave plate
Other Parts Treatment

High grade anti-corrosion paint or hot

dipped galvanized (Optional)

Color Red, Blue, Grey, Yellow etc.
(Customized according to user demand )
Maximum Working Pressure 16 MPa
Workig noise <65dB
HS Code 84289020
Warranty Term

12 months for electrical key parts,

5 years for structure

Certification ISO9001 and CE



Working Principle

The equipment is designed as -1+1, -1+2 or -2+2 levels and multi-rows smart puzzle parking system. The ground evel is designed with a spare space for exchanging spaces for other cars. The bottom and top level cars can be lifted vertically automatically, and the middle levels cars can be slided horizontally automatically to give a vacancy for the car from top or bottom space. When the car reach to the ground level, it can be driven in or out easily.



Characteristics

Reliable motor and chain drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC microcontroller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection devices

Safety anti-falling frame;

Including over or under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limit switch status tracking detection.



Adapted Places

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Pictures

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2



Sample Drawings

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

21. Pit Design Puzzle Parking System PSH-1+1, PSH-1+2, PSH-2+2

FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.



4. How about the lead time?
---30-45 days (According to order quantity).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



11. Can you add the automatic simple safe door at ground level?

---Yes, we can add, it is automatic up and down moment, its system can be linkage with puzzle system.
