20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

China 20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels) supplier

Large Image :  20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-PSH (2 to 12 levels)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2000-4200/car space
Packaging Details: Standard Export Package
Delivery Time: 3045 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 car spaces / month
Contact Now
Detailed Product Description

Specifications

Brand Name STMY
Product Name 2-12 Levels Smart Puzzle Parking System
Model No. PSH (2-12 Levels)
Mode of Operation IC card/Manual buttons
Mode of drive Hydraulic and Wire Rope
Car Capacity ≤2000, 2500kg
Car Size (L×W×H)

≤5000x1850x1550(mm)

≤5000x1850x2050(mm)

Lifting Motor Power/ Speed 4-22.5 KW / 8-12m/min
Sliding Motor Power/ Speed 0.2 KW/ 7-8m/min
Power Supply 380V/50Hz ; 3Phase 5wire

(Customized for different country demand)

Safeguard devices Whole protection and anti-falling frame
Malfunction indication Fault diagnosis code, liquid crystal display
Car platforms Galvanized wave plate
Other Parts Treatment

Spray Zinc firstly and then Spray-paint second time (Twice)

Color

Grey, Apple Green, Peacock blue (optional)

Maximum Working Pressure 16 MPa
Workig noise <65dB
HS Code 84289020
Warranty Term

12 months for electrical key parts,

5 years for structure

Certification

ISO9001 and CE



Actuating Device

Hydraulic Pump Station + Steel Rope + Car Loading Pallet



Working Principle

The equipment is designed with multi-levels and multi-columns smart puzzle parking system. It is designed with several empty spaces for exchanging spaces for other vehicles in each PLC unit. All spaces can move vertically or horizontally by the drive of hydraulic except the space in the top level. The top level cars can only move vertically. When a car needs to park or release, all spaces under this car will move automatically to form a free channel under this space, in this case, the space will go up and down freely. When it reaches the ground, the car will be driven out and in easily.



Characteristics

Take full use of land to raise more parking spaces;

Reliable hydraulic fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.



Adapted Places

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Online video link

https://youtu.be/rBF5zcy6V_8



Pictures:

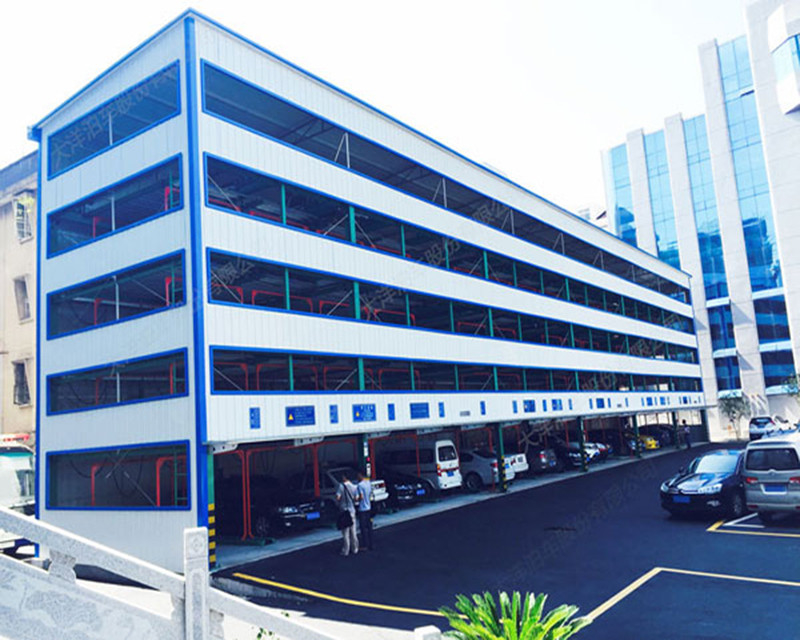

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

Structures:

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

20. Smart Puzzle Parking System Hydraulic QDMY-PSH (2 to 12 levels)

Notes:

1. We can do 2 to 9 levels smart puzzle parking system with motor and wire rope drive mode.

2. We can do 2 to 15 levels smart puzzle parking system with hydraulic and wire rope fast drive mode.

3. Please provide us your land layout in Autocad or PDF, our engineer will make design for you and provide best parking solution for your project.



FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---16 car spaces can be loaded into 1x40ft open top container.



4. How about the lead time?
---30-45 days (According to order quantity).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



11. More information about puzzle parking system.
---The hydraulic and wire rope mode is faster running speed than motor and wire rope drive mode;
---It is usually used for public places, where the car moves very frequently, like hotels, hospitals, shopping centers, airports, touriest center, government buildings etc...
---If customer perfer hydraulic, we can recommed this type.



Note: For more information, send email to: victoria.zhang@qdmy-parking.com
