19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

China 19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels) supplier

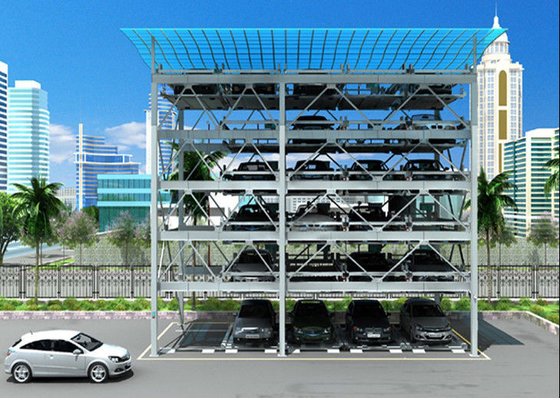

Large Image :  19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: QDMY-PSH (2 to 9 levels)

Payment & Shipping Terms:

Minimum Order Quantity: 5 Car spaces
Price: $2000-3600/car space
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 car spaces / month
Contact Now
Detailed Product Description

Specifications

 Brand Name  STMY
 Product Name  2-9 Levels Smart Puzzle Parking System
 Model No.  PSH (2-9 Levels)
 Mode of Operation  IC card/Manual buttons
 Mode of drive  Motor and Wire Rope
 Car Capacity  ≤2000, 2500kg
 Car Size (L×W×H)

 ≤5000x1850x1550(mm)

 ≤5000x1850x2050(mm)

 Lifting Motor Power/ Speed  3.7 KW / 4-7 m/min
 Sliding Motor Power/ Speed  0.2 KW/ 7-8m/min
 Power Supply  380V/50Hz ; 3Phase 5wire

 (Customized for different country demand)

 Safeguard devices  Whole protection and anti-falling hook
 Malfunction indication  Fault diagnosis code, liquid crystal display
 Car platforms  Galvanized wave plate
 Other Parts Treatment

 High grade anti-corrosion paint or hot

 dipped galvanized (Optional)

 Color  Red, Blue, Grey, Yellow etc.
 (Customized according to user demand )
 Maximum Working Pressure  16 MPa
 Workig noise  <65Db
 HS Code  84289020
 Warranty Term

 12 months for electrical key parts,

 5 years for structure

 Certification  ISO9001 and CE



Working Principle

The equipment is designed with multi-levels and multi-rows and each level is designed

with a spare space as an exchanging space. All spaces can move vertically or horizontally

by the drive of motor or hydraulic except the space in the top level. The top level cars

can only move vertically. When a car needs to park or release, all spaces under this car

will move automatically to form a free channel under this space, in this case, the space

will go up and down freely. When it reaches the ground, the car will be driven out and

in easily.



Characteristics

Take full use of land to raise more parking spaces;

Reliable motor with wire rope drives;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC microcontroller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Device

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.



Adapted Places

Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc..



Online Video Link

https://youtu.be/thBwy0HLdHQ

http://youtu.be/IuaeE5sNOpU

https://youtu.be/UAlysinqO-w



Pictures

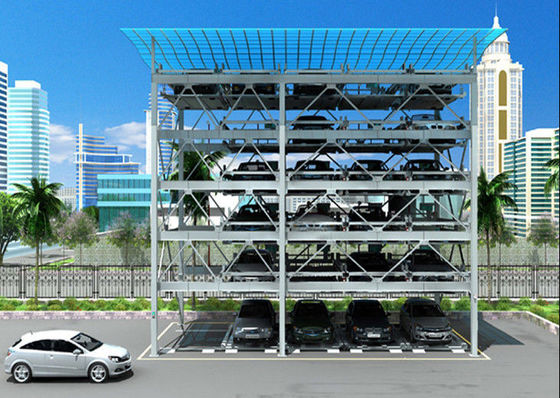

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

Structures:

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

19. Smart Puzzle Parking System Motor and Wire Rope QDMY-PSH (2 to 9 levels)

Notes:

1. We can do 2 to 9 levels smart puzzle parking system with motor and wire rope drive mode.

2. We can do 2 to 15 levels smart puzzle parking system with hydraulic fast drive mode.

3. Please provide us your land layout in Autocad or PDF, our engineer  will make design for you and provide best parking solution for your project.



FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.



4. How about the lead time?
---30-45 days (According to order quantity).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



11. More information about puzzle parking system.
---2 levels puzzle system, we use motor and chain drive mode;
    It is usually installed underground for basement parking lot with 3600-4000mm height;
    This is the best seller in China. Every new apartment will use this type.
    It also can be used for outdoor, but better have a rain canopy.
---3-9 levels puzzle system, we use motor and wire rope drive mode;

    It is usually installed outdoor, for factory or office staffs, schools, residential areas etc...

---2-15 levels puzzle system, we use hydraulic fast drive mode;

     It is usually installed outdoor, for public places, where the car moves very frequently, like hotels, hospitals, shopping centers, airports, touriest center, government buildings etc...
