Product Details:
Payment & Shipping Terms:
|
Specifications:
| Brand Name | STMY |
| Model No. | QDMY-BC-2 |
| Product Name |

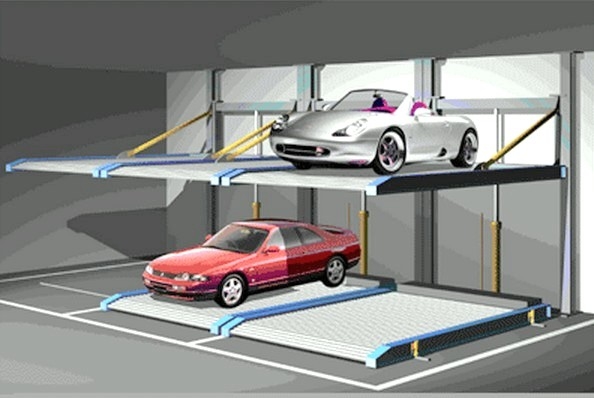

2 Level Back Cantilever Puzzle Parking System |
| Mode of Drive | Hydraulic+Steel Rope |
| Mode of Operation |
Manual Buttons/ IC Cards |
|
Car Capacity |
≤2000kgs |
| Car Size (L×W×H) |
5000mm×1850mm×1550mm 5000mm×1850mm×1750mm |
|
Lifting Power / Speed |
4kw 8-12m/min |
|
Sliding Power / Speed |
0.2kw 7.5m/min |
| Power Supply |
110v/220V/240V/380V/415V (Customized for different country) |
| Safeguard Device | Whole protection and anti-falling devices |
|
Car Platforms |
Galvanized wave plates |
| Surface Treatment | Spray Zinc firstly and then Spray-paint (Twice) |
|
Color |
Grey, Apple Green, Peacock blue (optional) |
| Work Noise | < 65dB ( A ) |
| Package | Standard Export Package |
| Container Informaiton | 16 car spaces into 1x40ft open top container |
| Certificate |
ISO9001 and CE |
| Warranty |
12 months for electrical key parts, 5 years for structure |
| HS Code | 84289020 |
Actuating Device
Hydraulic Pump Station+Steel Rope+Car Loading Pallet
Working Principle
The equipment is designed with 2 levels and multi-bays. There is an empty car space for exchanging space for other cars. The bottom level cars can move horizontally, while the top level can move only vertically. When the car loading pallet reaches the ground, the car can be driven in or out easily.
Characteristics
Take full use of land to raise more parking spaces;
Reliable hydraulic fast drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC micro-controller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony with surrounding environment.
Protection Devices
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Adapted places
Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...
Online video link
https://youtu.be/thBwy0HLdHQ (same working principle)
Photos:
Sample drawings
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---15 car spaces can be loaded into 1x40' open top container.
---Open top container can load and unload cargo by crane and forklift, to save time and
labour cost.
---The MOQ (Minimum Order Quantity is 15 car spaces for this model.
---12 months for electrical parts, 5 years for mechanical structure.
---ISO9001 & CE.
Note: For a full complete set of drawings, send email to: totti.yu@qdmy-parking.com
