18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

China 18. Two Levels Smart Puzzle Parking System PSH2 supplier

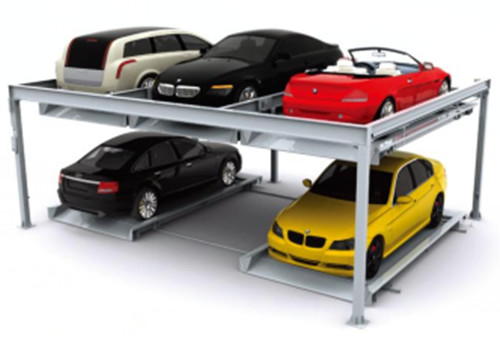

Large Image :  18. Two Levels Smart Puzzle Parking System PSH2

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: PSH2

Payment & Shipping Terms:

Minimum Order Quantity: 5 Car spaces
Price: $2000-2500/car space
Packaging Details: Standard Export Package
Delivery Time: 30-45 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 car spaces / month
Contact Now
Detailed Product Description

Specifications

 Brand Name  STMY
 Product Name  Two Levels Smart Puzzle Parking System
 Model No.  PSH2
 Mode of Operation  IC card/Manual buttons
 Mode of drive  Motor and chain
 Car Capacity  ≤2000, 2500kg
 Car Size (L×W×H)

 ≤5000x1850x1550(mm)

 ≤5000x1850x2050(mm)

 Lifting Motor Power/ Speed  2.2 KW / 4-5 m/min
 Sliding Motor Power/ Speed  0.2 KW/ 7-8m/min
 Power Supply  380V/50Hz ; 3Phase 5wire

 (Customized for different country demand)

 Safeguard devices  Whole protection and anti-falling hook
 Malfunction indication  Fault diagnosis code, liquid crystal display
 Car platforms  Galvanized wave plate
 Other Parts Treatment

 High grade anti-corrosion paint or hot

 dipped galvanized (Optional)

 Color  Red, Blue, Grey, Yellow etc.
 (Customized according to user demand )
 Maximum Working Pressure  16 MPa
 Workig noise  <65Db
 HS Code  84289020
 Warranty Term

 12 months for electrical key parts,

 5 years for structure

 Certification  ISO9001 and CE



Working Principle

The equipment is designed with 2 levels and multi-bays. There is an empty car space

for exchanging space for other cars. The bottom level cars can move horizontally, while

the top level can move only vertically. When the car loading pallet reaches the ground,

the car can be driven in or out easily.



Characteristics

Take full use of land to raise more parking spaces;

Reliable motor with chain drives;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC microcontroller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Device

Safety anti-falling hook;

Over or under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limit switch status tracking detection.



Adapted Places

Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc..



Online Video Link

https://youtu.be/thBwy0HLdHQ



Pictures

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2

18. Two Levels Smart Puzzle Parking System PSH2



18. Two Levels Smart Puzzle Parking System PSH2

Structures:

18. Two Levels Smart Puzzle Parking System PSH2

Notes:

1. This 2 level smart puzzle parking system can be used in both indoor and outdoor parking lots.

2. The parking car numbers can be increased according to your land size.

3. Please provide us your land layout in Autocad or PDF, our engineer  will make design for you and provide best parking solution for your project.



Package:

18. Two Levels Smart Puzzle Parking System PSH2

FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.



4. How about the lead time?
---30-45 days (According to order quantity).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



Note: For a full complete set of drawings, send email to: totti.yu@qdmy-parking.com
