15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

China 15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1, supplier

Large Image :  15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001& CE
Model Number: PJS-1+1; PJS-2+1; PJS-3+1

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $2500-3000/per car space
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Car spaces/month
Contact Now
Detailed Product Description

Specifications

Brand Name STMY
Product Name Pit Design Four Post Parking Lift
Model No.

PJS-1+1, PJS-2+1, PJS-3+1

Mode of Operations Manual buttons/Keys
Mode of drive Motor & Chain / Hydraulic
Car Capacity ≤2000kg, 2500kg, 3000kg
Car Size (L×W×H)

≤5000x1850x1650(mm)

≤5000x1850x1950(mm)

≤5900x2200x2250(mm)

Lifting speed

4-6m/min

Lifting Height 2200mm (Customized)
Safeguard device Whole protection and anti-falling lock device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity 220/380V/415V
(Customized for different country)
Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint
Color Red, Blue, Grey, Yellow etc.
(customized according to user demand )
Certification ISO9001 and CE



Working Principle

This is -1+1, -2+1, or -3+1 pit design parking system. The spaces of top and bottom

are united and lifted together. Usually, the bottom space is underground in the pit. The

top level space is in the same line with the ground. The top level car can park in and out

directly. The bottom space may park car when it is lifted.



Characteristics

Save land and take full use of the underground space.

It can achieve multiple-units together to raise more parking numbers.

The middle and bottom levels have functions of dust proof, rainproof and anti-theft.

This system is simple, reliable and easy to operate.

The top level may be planted with grass and flowers to increase the green land area.

Outer parking types may be designed as full packing, half packing, simple packing or

nude packing according to the customers' requirements.

No influence to building sharing light.



Adapted places

Widely using in residential parking lot, hotels, schools, office buildings, apartment, etc…



Online Video link

PJS-2+1:https://youtu.be/B8OZO5NK_is

PJS-3+1:https://youtu.be/klUpIDjdvSc

PJS-3+1:https://youtu.be/gfHkbz-5xHY



Pictures

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,



15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,



15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

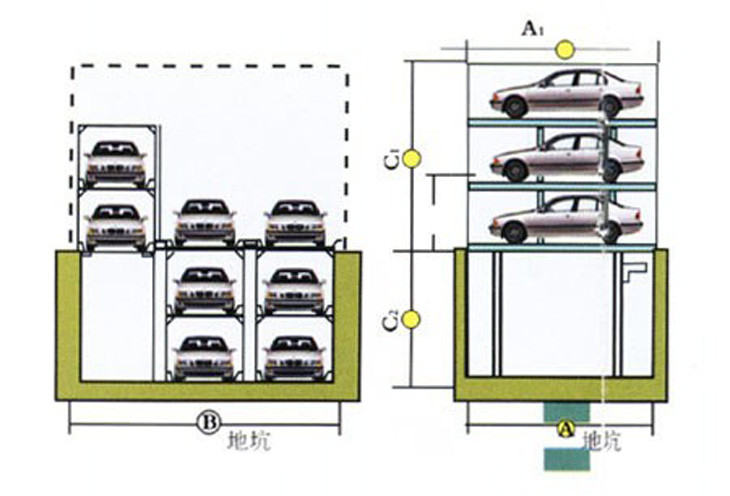

Structure and Dimensions:



15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,



15. Pit Design Four Post Parking Lift PJS-1+1, PJS-2+1,

FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---15 car spaces can be loaded into 1x40'GP container.



4. How about the lead time?
---30-45 days (According to order quantity).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients.

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is relatively simple structure, usually we send installation manual to the client, and they can install it themselves.
---We can also send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO9001 & CE.



11. The car size and car height can be customized?

---Yes.


12. What about the platforms.

---Usually the platforms are zinc wave plates, the upper level can choose zinc wave plates, or diamond pattern plates.

---The U shape whole board platform is only for domestic customer, not suitable for exporting and load into containers.



13. Can we decorate the top level with grass or floor tiles?

---Yes, you should tell us ahead of time, we will make the top platform 8-10 cm lower.



Note: For a full complete set of drawings, send email to: totti.yu@qdmy-parking.com
