14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

China 14. Four Post Lifting Platform QDMY-SJD Series supplier

Large Image :  14. Four Post Lifting Platform QDMY-SJD Series

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO9001 & CE
Model Number: QDMY-SJD Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $6500-10000/ per set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, , L/C, Western Union, MoneyGram
Supply Ability: 1000 Sets/month
Contact Now
Detailed Product Description

Product Specifications:

Brand Name STMY
Model No.

QDMY-SJD Series

Type Four Post Lifting Platform
Mode of Operations Manual buttons/Keys
Car Capacity 2000-6000kgs (Customized)
Mode of drive Hydraulic
Car Size (L×W×H)

5000mm×1850mm×1550mm
5000mm×1850mm×2050mm; (Customized)

Platform Size (LxW) 5500mm x 2800mm (Customized)
Lifting Height 2200mm (Customized)
Safeguard device Whole protection and anti-falling lock device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity

220-415V
(Customized for different country)

Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint
Color

Red, Blue, Grey, Yellow etc.
(customized according to user demand )

Certification ISO9001 and CE



Introduction:

1.Self-protection control and lifting, there are control buttons on each floor;

(the control buttons are also provided on the platform).

2. Emergency stop buttons are installed on the upper and lower sides of the work platform to ensure the personal safety of the operators and users.

3. The lifting platform has a self-locking function in the event of power failure or sudden power failure;

4. The product has integrated control function and elevator control system;

5. There are safety guardrails on both sides of the lifting platform (can also be made into cabinet on both sides according to customer requirements);

6. The system is equipped with an emergency descent valve. When the lifting platform is suddenly powered off, this device can be used to safely lower the lifting platform.



Security devices:

1. Emergency protection: There is emergency emergency stop function outside the distribution box. If the equipment has an unexpected situation in the working state, pressing the emergency stop button can ensure that the equipment does not cause secondary accidents;

2. Anti-falling protection: the device is designed with anti-drop system, controlled by anti-drop push rod motor, no matter whether the platform stops at any layer, it is as smooth as stopping on the ground;

3. Cylinder protection: The bottom of the cylinder is equipped with a blasting device. If the oil pipe is broken under the working condition, the explosion-proof valve at the bottom of the cylinder will be in a corresponding explosion state to prevent the cylinder from falling instantaneously;

4. Line protection: Line protection means that the whole set of lines are wrapped by special insulated tubes to prevent direct connection between lines and lines to prevent line leakage and power.



Online video link:

https://youtu.be/MMPztIR1OoQ

https://youtu.be/aOg9YaU3btg

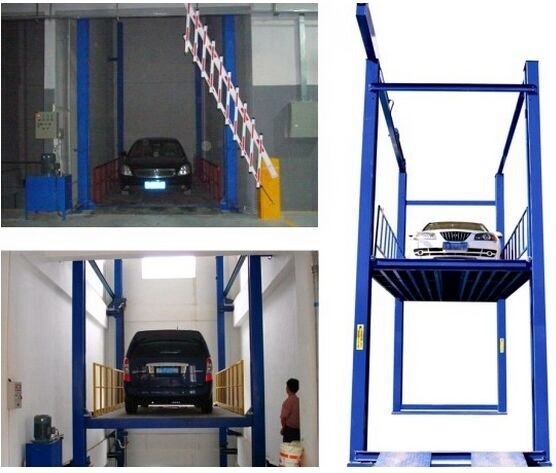

Pictures:
14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series

14. Four Post Lifting Platform QDMY-SJD Series



Sample Drawings:
14. Four Post Lifting Platform QDMY-SJD Series
Remarks:

1. There is no standard drawings for this product, platform size, lifting weight and stops height are customized.

2. This product can work as car elevator or lifting for any cargo.

3. For heavy duty or several lifts are installed very closely, we will consider to add auxiliary guide rails to ensure more stable of system.



FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?

---30%TT in advance, and 70%TT before shipping.


3. How about the loading information and HS Code?

---The HS code is 84289020
---Container information depends on machine size.



4. How about the lead time?
---20-30 days (In peak season, 45 days).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

7. How about the installation?
---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

8. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



9. What are the certificates?

---ISO9001 & CE.



Note: For more questions, send email to: totti.yu@qdmy-parking.com
