12. Pit Design Scissor Parking Lift QDMY-SJG

12. Pit Design Scissor Parking Lift QDMY-SJG

China 12. Pit Design Scissor Parking Lift QDMY-SJG supplier

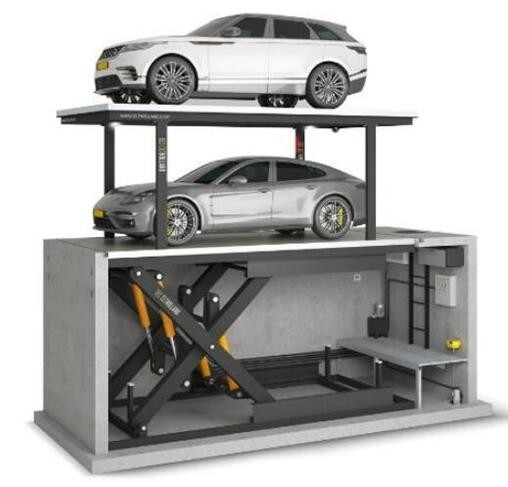

Large Image :  12. Pit Design Scissor Parking Lift QDMY-SJG

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO & CE
Model Number: QDMY-SJG

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $4000-5500/ per car space
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, , L/C, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Contact Now
Detailed Product Description

Product Specifications:

Brand Name STMY
Model No.

QDMY-SJG
1 level above ground, 1 level underground in a pit

Type Pit design scissor parking lift for 2 cars
Mode of Operations Manual buttons/Keys
Car Capacity ≤2000kgs; 3000kg; 3500kg (Customized)
Mode of drive Hydraulic
Car Size (L×W×H)

5000mm×1850mm×1550mm
5000mm×1850mm×2050mm; (Customized)

Platform Size (LxW) 5500mm x 2800mm (Customized)
Lifting Height 2200mm (Customized)
Safeguard device Whole protection and anti-falling hook device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity

220-415V
(Customized for different country)

Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint
Color

Red, Blue, Grey, Yellow etc.
(customized according to user demand )

Certification ISO9001 and CE



Actuating Device:
Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform

Working Principle:
This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level, the user can pick or park his car easily.

Characteristics:

  • Take full use of land to raise more parking spaces;
  • Reliable hydraulic drive modes;
  • A whole system for safety protection for cars or personals;
  • Saving energy and environmental protection;
  • Simple operated with manual buttons and keys;
  • Optional color can be easily in harmony with surrounding environment;
  • The top level may be decorated with grass or floor tiles to harmony with surrounding building.
  • No influence to building sharing light



Online Video Show:
https://youtu.be/vTbBz_gM3pI


Pictures:
12. Pit Design Scissor Parking Lift QDMY-SJG
12. Pit Design Scissor Parking Lift QDMY-SJG

12. Pit Design Scissor Parking Lift QDMY-SJG
Sample Drawings:
12. Pit Design Scissor Parking Lift QDMY-SJG

12. Pit Design Scissor Parking Lift QDMY-SJG
Remarks:

1. There is no standard drawings for this product, all size, lifting weight and traveling height are customized.

2. This system can be customized to park 2 or 3 cars.
