10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

China 10. 3 Floors Valet Parking Lift QDMY-3-2P supplier

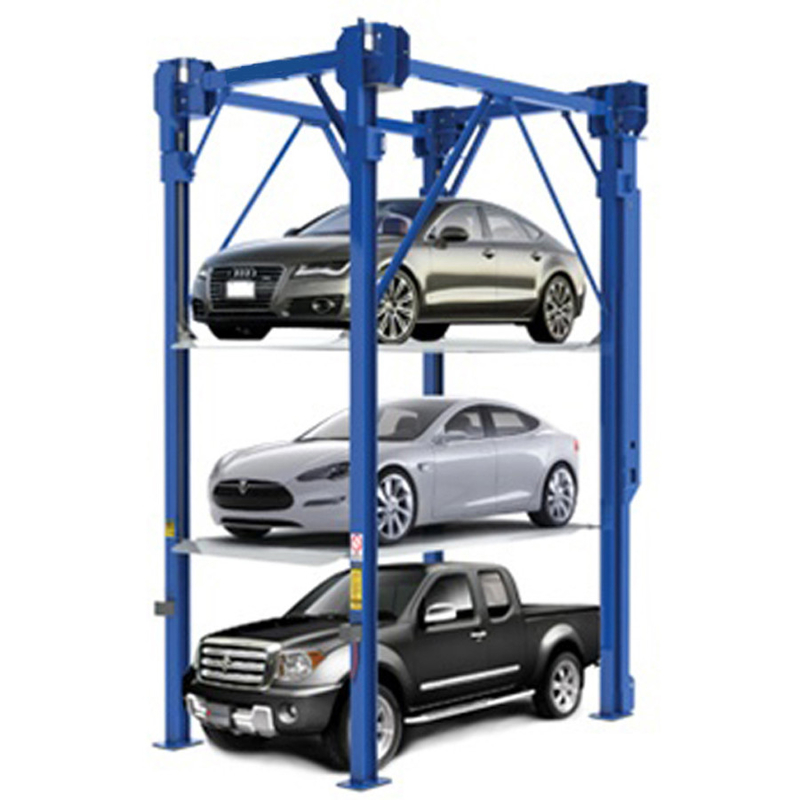

Large Image :  10. 3 Floors Valet Parking Lift QDMY-3-2P

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO & CE
Model Number: QDMY-3-2P

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $2800-3000/Per car space
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 Sets/month
Contact Now
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.  QDMY-3-2P
Type  3 Floors Valet Parking Lift
Mode of Operations  Manual Control buttons /  Keys
Car Capacity

 ≤2000kg; 2500kgs

Mode of drive

 Hydraulic

Car Size  (L×W×H)

in mm

 ≤5000x1850x1550

 ≤5000x1850x1600

 ≤5000x1850x1980

 ≤5000x1850x2050

 ≤5500x2200x1980

Lifting speed

 30-40s/level

Warning device

 Yes
Safeguard device  Anti-fall Lock devices
Rise Time  60s
Fall Time  50s
Work Noise  < 60dB ( A )
Voltage

 110-415V 1 or 3 Phases (Customized)

Motor Power  3.0 KW
Maximum Working Pressure  16 MPa
Machine Net Weight  No more than 4650kgs
Modes of operation

 High-grade anti-corrosion powder coating.

Color

 Red, Blue, Grey, Yellow etc.

( customized according to user demand )

Certification

 ISO9001 & CE



Introduction:

1. Storage parking system, mostly used for new cars or cars not move frequently;

2. The platforms can be overlapped, the column can be shared upon the parking space, more economical and safer;

3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space;

4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform;

5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently;

6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car;

7. One unlock handle to release every platform;

8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer;

9. Mold machining through the whole process so that the parts are universal and interchangeable;

10. Pass 120% capacity dynamic load text and 150% static load test;

11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop;

12. Optional ultrared rays alarm device, in case of unguarded entrance.



Online Video Show:

http://youtu.be/yEwKvjD8oUg



Pictures:

10. 3 Floors Valet Parking Lift QDMY-3-2P



10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P

10. 3 Floors Valet Parking Lift QDMY-3-2P
Structure and Dimensions:

10. 3 Floors Valet Parking Lift QDMY-3-2P

                                                            QDMY-2-1P 2000KG OLD



10. 3 Floors Valet Parking Lift QDMY-3-2P

                                                 QDMY-2-1P 2000KG NEW

10. 3 Floors Valet Parking Lift QDMY-3-2P

                                                QDMY-2-1P 2500KG NEW

FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your port name).

2. What payment term can you accept?
---100%TT in advance for sample order (1-3 sets)

---30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020
---4 sets of Unit A/ into 40’GP container;  6 sets of Unit B /into 40’GP container



4. How about the lead time?
---20-30 days (In peak season, 45 days).

5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO90001 & CE.



11. Can the posts be shared? What means Unit A and Unit B?

---Yes, the posts can be shared, and price will not be little cheaper.

---Unit A means first set indepedant, Unit B means next set dependant and share posts with Unit A.



12. What is QDMY-2-1P old model?

---Its height is only 5720mm, so suitable for low ceiling height garages.
