6. Four Post Parking Lift with Full Plate QDMY-608C

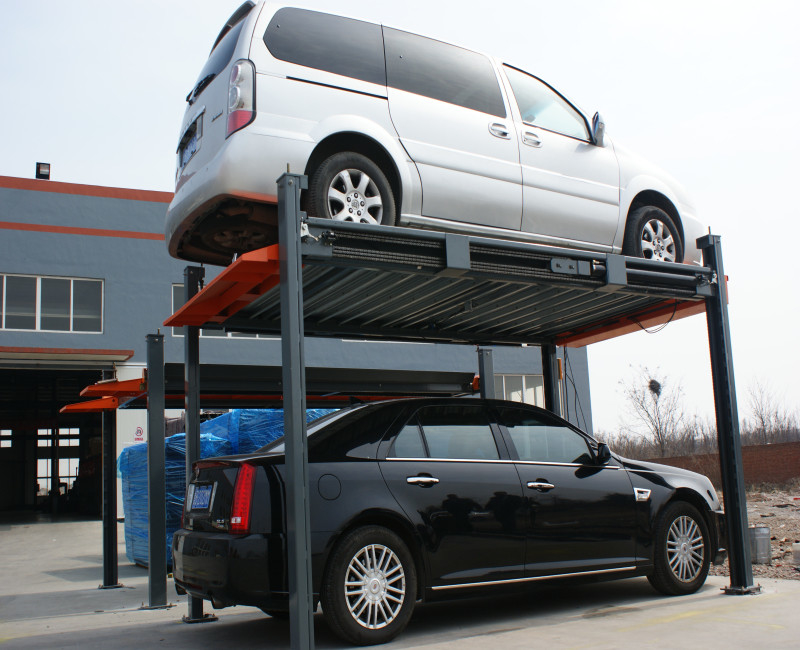

: Large Image : 6. Four Post Parking Lift with Full Plate QDMY-608C

Product Details:

Place of Origin:	Qingdao, China
Brand Name:	STMY
Certification:	ISO90001 & CE
Model Number:	QDMY-608C

Payment & Shipping Terms:

Minimum Order Quantity:	1-3 Sets
Price:	$1600-1800/Per Set
Packaging Details:	Standard Export Package
Delivery Time:	20-30 days
Payment Terms:	30%TT in advance, 70%TT before shipping
Supply Ability:	3000 Sets/month

Contact Now

Detailed Product Description

Product Specifications:

Brand Name	STMY
Model No.	QDMY-608C
Type	Four Post Car Parking Lift with Full Platform
Mode of Operations	Manual buttons / Keys
Car Capacity	≤3700kgs
Mode of drive	Hydraulic and Wire Rope
Car Size (L×W×H)	≤5000×1950×2050 (mm) ≤5000×1950×1700 (mm)
Lifting Height	1750mm; 2000mm
Warning device	Yes
Safeguard device	Hydraulic whole protection and anti-fall lock devices
Rise Time	50s
Fall Time	40s
Work Noise	< 65dB ( A )
Voltage	110-415V; 1 or 3 Phases
Motor Power	2.2KW
Maximum Working Pressure	16 MPa
Machine Net Weight	920kgs
Modes of operation	High-grade anti-corrosion paint
Color	Black, Red, Blue, Grey, Yellow etc. ( Customized)
Certificate	ISO9001 and CE

Working Principle:

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

Description:

Simple operation

Safe and reliable

Convenient in and out of car

Ultra low noise

Small space occupation

Beautiful and fashionable in appearance

Easy and fast installation

Motor & hydraulic pump are hidden design into back beam

Both suitable for home use and public use

Foundation Requirement:

1.The ground compressive strength should not less than 200kgs/cm2;

2. Concrete thickness not less than 300mm, strength not less than level 250;

3. New concrete should be set 28days, level error not more than 3mm.

Pictures:

6. Four Post Parking Lift with Full Plate QDMY-608C

Structure and Dimensions:

6. Four Post Parking Lift with Full Plate QDMY-608C

FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)

----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020

---8 sets/20'GP container, 16 sets/40'GP container.

4. How about the lead time?

---30 days (In peak season, in 45 days),

5. Can you provide OEM service?

--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?

--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide training services?

--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?

---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.

10. What are the certificates?

---ISO90001 & CE.

11. The standard model lifting height is 1750mm, if customize height as 2000mm, ok?

---Yes, the price needs to add +USD100.

12. What's its feature?

---The car platform is full filled galvanized wave plate.

---Its motor & hydraulic pump are hidden inside back beam, nice appearance.
