Product Details:
Payment & Shipping Terms:
|
Product Specifications:
| Brand Name | STMY |
| Model No. |
QDMY-608A, QDMY-608B |
| Type | Four Post Car Parking Lift |
| Mode of Operations | Manual buttons / Keys |
| Car Capacity |
≤2700kgs; 3600kgs;4000kgs |
|
Mode of drive |
Hydraulic and Wire Rope |
| Car Size (L×W×H) |
≤5000×1850×1550 (mm) ≤5000×1850×1700 (mm) ≤5200×2000×1700 (mm) ≤5200×2000×2050 (mm) |
|
Lifting Height |
1800mm; 2000mm; 2100mm |
|
Warning device |
Yes |
| Safeguard device | Hydraulic whole protection and anti-fall lock devices |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 65dB ( A ) |
| Voltage |
110V-415V; 1 or 3 Phases |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| Machine Net Weight | 760kgs; 860kgs, 950kgs, 780kgs, 880kgs, 980kgs |
| Modes of operation |
High-grade anti-corrosion paint |
| Color |
Black, Red, Blue, Grey, Yellow etc. (Customized) |
| Certificate | ISO9001 and CE |
Working Principle:

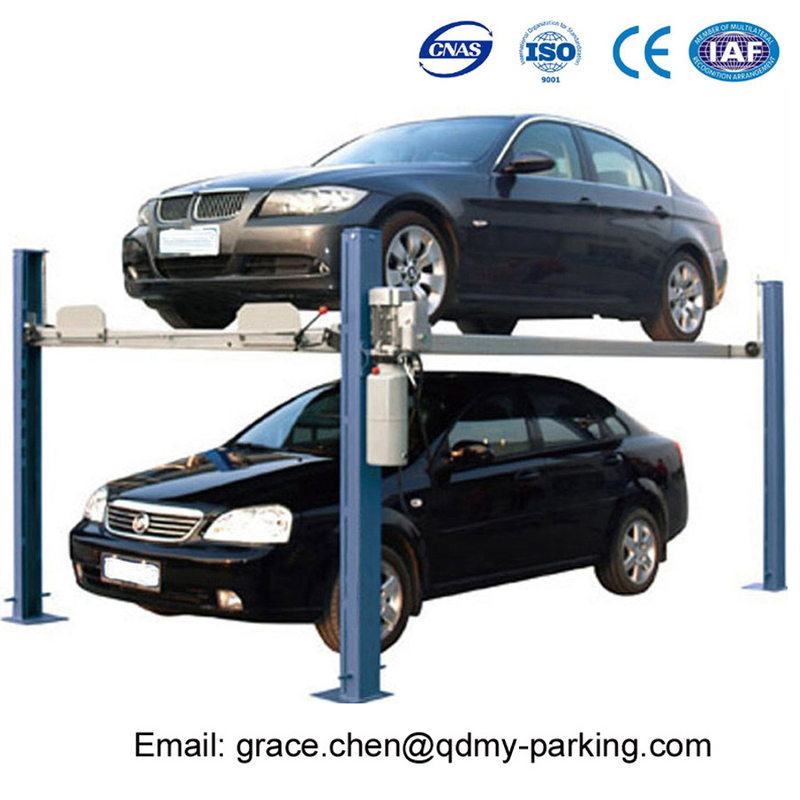

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
Description:
1. Good choice for parking or simple repair
2. Hydraulic driven, cable lifting system
3. Manual or electric single point release
4. Automatic lock system ensure safety in different heights
5. Maintenance free load bearing
6. Immovable runway
7. Stop blocks in all posts for added safety
8. Moveable drip trays prevent pollution of vehicle on floor
9. Caster kit for moving the lift easily
10.Mold machining through the whole process so that the parts are universal and interchangeable
11.120% capacity Dynamic load text and 150% static load test
12.Italian oil seal to make sure no oil leakage
13.Electromagnetic valve with urgent manual drop function
14.Optional Manual pump for lock release in case of power off.
15.Optional 24V Control box and Electromagnetic valve.
Online Video Show:
Pictures:
3 nos. of plastic oil trays
1 nos. of iron oil tray
Add galvanized wave plate between runways
Add diamond thread plate between runways
Add protection baffles at both side runways
Add four wheels for moving in 360° directions
Choose manual unlock release or automatic release?
Structure and Dimensions:
1.QDMY-608A 1800M
2.QDMY-608A 2000M
3. QDMY-608A 2100M
4. QDMY-608A 1800M WIDENED
5. QDMY-608A 2000M WIDENED
6. QDMY-608A 2100M WIDENED
7. QDMY-608B 1800MM
8. QDMY-608B 2000M
9. QDMY-608B 2100M
Important Remarks for QDMY-608A & QDMY-608B
1. We give 1 nos. of iron tray and 3 nos. of plastic oil trays for free.
2. If add galvanized wave plate in the middle part, each set needs to add +USD150.
3. If add side protection baffles at both side runways, each set needs to add +USD50.
4. If add wheels for moving, each set needs to add +USD35.
5. If change manual unlock release to automatic release, each set needs to add +USD120.
6. If increase the middle runway from 950 to 1020mm, price not change.
7. Lifting weight: 2700kgs/3600kgs/4000kgs (Customized)
8. QDMY-608A is standard model, QDMY-608B is new square tube design.
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)
----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.
3. How about the loading information and HS Code?
---12 months for electrical parts, 5 years for mechanical structure.
---ISO90001 & CE.
Note: For more questions, send email to: totti.yu@qdmy-parking.com
