8. Two Post Triple Parking Lift QDMY-1-P

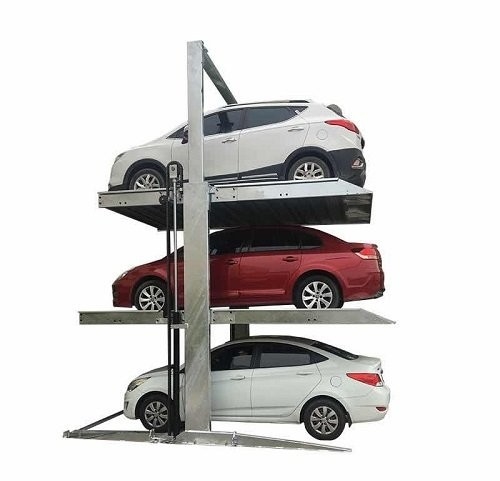

8. Two Post Triple Parking Lift QDMY-1-P

China 8. Two Post Triple Parking Lift QDMY-1-P supplier

Large Image :  8. Two Post Triple Parking Lift QDMY-1-P

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-1-P

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $3600/Per set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 Sets / month
Contact Now
Detailed Product Description

Product Specifications:

 Brand Name  STMY
 Product Name

 Two Post Triple Parking Lift

 Model No.


 Car Weight  ≤2000kg
 Car Size (L/W/H)

 2-3F: ≤5000x1850x1550(mm)

 1F: ≤5000x1850x2000(mm)

 Mode of Drive

 Hydraulic & Chain

 Motor Power


 Lifting Speed


 Working Voltage  110-415V,  1 or 3 Phases

 Modes of Operation

 Manual control buttons / Keys

 Safeguard Devices

 Whole protection and 2 stages anti-falling


 Car Platform

 Galvanized wave plate

 Surface Treatment  Powder coating/Spray paint/Hot galvanized


 Grey, blue, green, white, yellow…(Optional)

 Car Platform Thickness                 CE & ISO



 Export standard packing

 (steel frame and foam film)

 Container Information

 4 sets/20’GP container; 10 sets/40’HQ   container


 12 months for electrical key parts,

 5 years for structure.

 Certification  ISO9001 and CE


Actuating Device:

Hydraulic Pump+Cylinder+Chain+Car Loading Pallet



1.The columns, slip-ways, car loading platforms adopt 5mm thickness steel plate with CNC machine to cut and bend in one time and then welded with square tubes. It has high structural strength and beautiful appearance.

2.The hydraulic cylinder seals are all imported from Italy, and the quality is stable and reliable. The oil pipes are all made of double-layer steel mesh hoses, and the bursting pressure is greater than or equal to 100 Mpa.

3.The hydraulic system has its own pressure holding function. When the equipment rises to a specified position. The pressure is maintained in the 20 Mpa without unloading. in addition, the loading plate has a mechanical anti-falling mechanism and double anti-fall protection.


1. The operation is simple, economical and practical, one parking space can park three vehicles.

2. The equipment occupies a small space and is suitable for various parking areas such as home use, office, automobile sharing, car rental, and automobile service center.

3.The car loading plates are flexibly connected, and can be placed in a superposed position, and the access vehicle is more convenient.

4.This device is hydraulic cylinder with chain drive mode, very mature technology and low wear, coaxial balance of left and right gears, synchronous safety and stability of transmission.

5.Two stages of anti-falling device, each floor of the vehicle platform has automatic mechanical anti-fall to protect the safety of people and cars.

6. Full mold processing craft, ensure components versatility and interchangeability, low maintenance costs.

7. Fixing equipment with expansion bolts, low cost for the installation.

8. Pass 120% dynamic load test and 150% static load test.



Widely Using in Residential Area, Apartment, Basement Parking Lot, School, Hotel, Office Buildings, etc...


Online video Show:




8. Two Post Triple Parking Lift QDMY-1-P

8. Two Post Triple Parking Lift QDMY-1-P

8. Two Post Triple Parking Lift QDMY-1-P

8. Two Post Triple Parking Lift QDMY-1-P

8. Two Post Triple Parking Lift QDMY-1-P

8. Two Post Triple Parking Lift QDMY-1-P

Structure and Dimension:

8. Two Post Triple Parking Lift QDMY-1-P


1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---100%TT in advance for sample order (1-3 sets)

---30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020
---4 sets/20’GP container; 10 sets/40’HQ container


4. How about the lead time?
---20-30 days (In peak season, 45 days).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.


10. What are the certificates?

---ISO90001 & CE.


11. Can the lifting height be customized? How about weight?

---The lifting height can be customized to meet different garage height requirement.

---The lifting weight of each car 2000kg cannot change for this model, but can park an SUV at bottom level on the ground.
