4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

China 4. Scissor Parking Lift DSPL606 supplier

Large Image :  4. Scissor Parking Lift DSPL606

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: DSPL606

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $1800-2300/Per set
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 sets/month
Contact Now
Detailed Product Description

Product Specifications:

Brand Name STMY
Model No. DSPL606
Type Scissor car parking lift
Mode of Operation Manual control buttons / Keys
Car Weight ≤2700kg
Car Size (L/W/H)

≤5000mm×1850mm×1550mm;

≤5000mm×1850mm×2050mm;

Lifting Height 2000mm
Mode of Drive Hydraulic
Runway Width 2126mm
Motor Power 2.2KW
Working Voltage 110-415V, 1 or 3 Phases
Warning Device Yes
Safeguard Device Fixed anti-falling lock devices
Control System Voltage AC24
Car Platform Thickness ≥200mm
Outer Size Please see below dimensions
Machine Weight 1100kg
Surface Treatment

High-grade anti-corrosion paint

or hot galvanized treatment

Color Red, Blue, Grey, Yellow etc. (Optional)
Certification ISO9001 and CE



Working Principle:

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.



Characteristics:

  • Simple operation
  • Safe and reliable
  • Convenient in and out of car
  • Ultra low noise
  • Small space occupation
  • Beautiful and fashionable in appearance
  • Easy and fast installation
  • Both suitable for home use and public use



Descriptions:

1. Can be used in household or office building parking lot;

2. Graceful and compact configuration;

3. Driven by hydraulic cylinders directly, equalizer ensures the synchronization and level of platform;

4. Simple and practical lock system, automatic lock and release system, safe and reliable;

5. Optional wave plate or diamond plate car platform; Optional spray paint or hot galnanized surface treatment;

6. Mold machining through the whole process so that the parts are universal and interchangeable;

7. Pass 120% capacity dynamic load test and 150% capacity static load test;

8. Italian oil seal to make sure no oil leakage;

9. Solenoid valve has the emergency manual lock release function;

10. Optional manual pump on power unit in case of power off;

11.Optional 24v control box and solenoid valve;

12.Optional ultrared rays alarm device, in case of unguarded entrance;

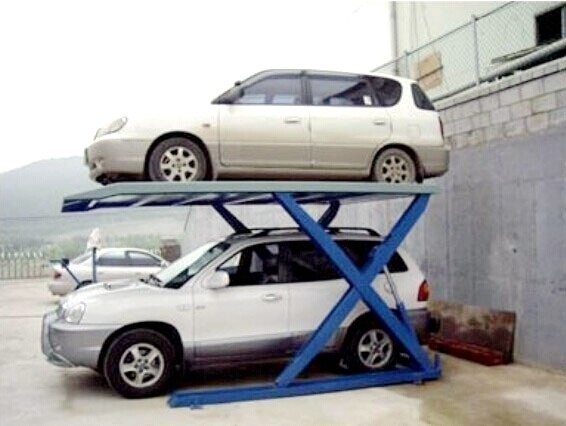

Pictures:

4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

4. Scissor Parking Lift DSPL606

Structure and Dimensions:

4. Scissor Parking Lift DSPL606

FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)

----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020
---16 sets/40'GP container



4. How about the lead time?
---30 days (In peak season, in 45 days),

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide training services?
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
----This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO90001 & CE.



Note: For more questions, send email to: totti.yu@qdmy-parking.com
