3. Single Post Parking Lift DSPP607, DSPP609

3. Single Post Parking Lift DSPP607, DSPP609

China 3. Single Post Parking Lift DSPP607, DSPP609 supplier

Large Image :  3. Single Post Parking Lift DSPP607, DSPP609

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: DSPP607, DSPP609

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $2000-2100/Per set
Packaging Details: Standard Export Package
Delivery Time: 20-30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 3000 Sets / month
Contact Now
Detailed Product Description

Product Specifications:

 Brand Name  STMY
 Product Name

 Single Post Parking Lift

 Model No.

 DSPP607, DSPP609

 Car Weight  ≤2500kg; 3200kg
 Car Size (L/W/H)

 2F: ≤5000x1850x1550(mm)

 1F: ≤5000x1850x1700/1900(mm)

 Mode of Drive

 Hydraulic & Chain

 Motor Power

 2.2KW

 Lifting Speed

 4-6m/min

 Working Voltage  110-415V,  1 or 3 Phases

 Modes of Operation

 Manual control buttons / Keys

 Safeguard Devices

 Whole protection and anti-falling devices

 Car Platform

 Galvanized wave plate

 (Customized for diamond pattern plate)

 Surface Treatment  Powder coating/Spray paint/Hot galvanized

 Color

 Grey, blue, green, white, yellow…(Optional)

 Car Platform Thickness                 CE & ISO

 HS CODE

 84289020
 Package

 Export standard packing

 (steel frame and foam film)

 Container Information

 If use glavanized car plate

 8 sets/20’GP; 16 sets/40’GP container

 If use diamond pattern plate:

 4 sets/20’GP; 8 sets/40’GP container

 Warranty

 12 months for electrical key parts,

 5 years for structure.

 Certification  ISO9001 and CE



Actuating Device:

Hydraulic Pump+Cylinder+Chain+Car Loading Pallet



Introduction:

1. Space-saving single post design, free entrance and exit for driver;

2. Single hydraulic cylinder, chain-driven system, faster lifting and lowering speed;

3. Single electric or manual lock release system, safe and reliable;

4. Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks;

5. Optional wave plat or diamond plate;

6. Mold machining through the whole process so that the parts are universal and interchangeable;

7. Pass 120% capacity dynamic load test and 150% capacity static load test;

8. Italian oil seal to make sure no oil leakage;

9. Solenoid valve has the emergency manual lock release function;

10. Optional 24v control box, solenoid valve and electromagnet.



Application:

Widely Using in Residential Area, Apartment, Basement Parking Lot, School, Hotel, Office Buildings, Car Stores, etc...



Online Video Show:

https://youtu.be/53kxfpsxk7o



Pictures:

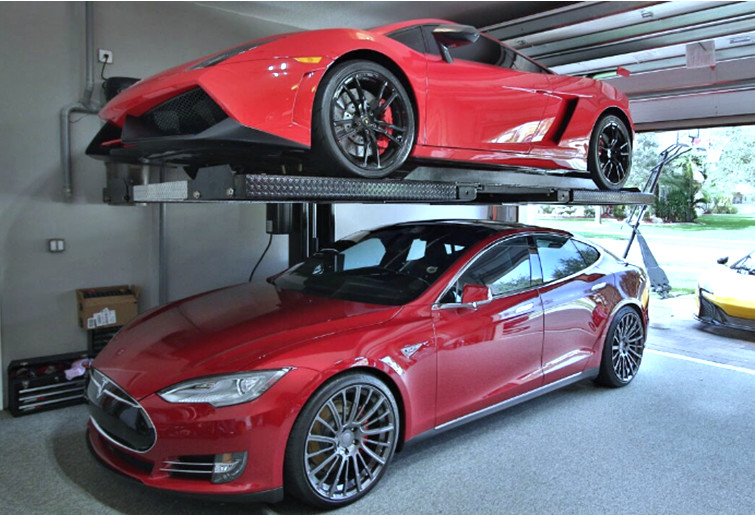

3. Single Post Parking Lift DSPP607, DSPP609

3. Single Post Parking Lift DSPP607, DSPP609

3. Single Post Parking Lift DSPP607, DSPP609

3. Single Post Parking Lift DSPP607, DSPP609

                For diamond pattern plate type, see below photos.

3. Single Post Parking Lift DSPP607, DSPP609

3. Single Post Parking Lift DSPP607, DSPP609



Dimensions:

3. Single Post Parking Lift DSPP607, DSPP609

(Remarks: if needs diamond pattern plate, please contact us)



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)

----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020
---If use galvanized car plates: 8 sets/20'GP container; 16 sets/40'GP container

---If use diamond pattern plates: 4 sets/20'GP container; 8 sets/40'GP container



4. How about the lead time?
---20-30 days (In peak season, in 45 days),

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide training services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
----This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.



10. What are the certificates?

---ISO90001 & CE.



Note: For more questions, send email to: totti.yu@qdmy-parking.com
