Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines

Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines

China Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier
Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines supplier

Large Image :  Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-BC-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $2500/per car space
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, T/T, L/C, D/A, D/P
Supply Ability: 3000 Car spaces/month
Contact Now
Detailed Product Description
Name: Hydraulic Parking System Type: Smart Puzzle Parking
Usage: Auto Parking Machines Category: Car Parking Systems

Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines



Product Specifications:

Brand Name                                                STMY
Model No.  QDMY-BC-2
Product Name

 2 Level Back Cantilever Puzzle Parking System

Mode of Drive   Hydraulic+Steel Rope
Mode of Operation

 Manual Buttons/ IC Cards

Car Capacity

 ≤2000kgs

Car Size  (L×W×H)

 5000mm×1850mm×1550mm

 5000mm×1850mm×1750mm

Lifting Power / Speed

 4kw  8-12m/min

Sliding Power / Speed

 0.2kw 7.5m/min
Power Supply

 110v/220V/240V/380V/415V

(Customized for different country's demand)

Safeguard Device                        Whole protection and anti-falling devices

Car Platforms

 Galvanized wave plates

Surface Treatment  Spray Zinc firstly and then Spray-paint (Twice)

Color

 Grey, Apple Green, Peacock blue (optional)

Work Noise  < 65dB ( A )
Package      Standard Export Package
Container Informaiton  16 car spaces into 1x40ft open top container
Certificate

 ISO9001 and CE

Warranty

 12 months for electrical key parts,

 5 years for structure

HS Code  84289020



Actuating Device:

Hydraulic Pump Station  + Steel Rope



Working Principle:

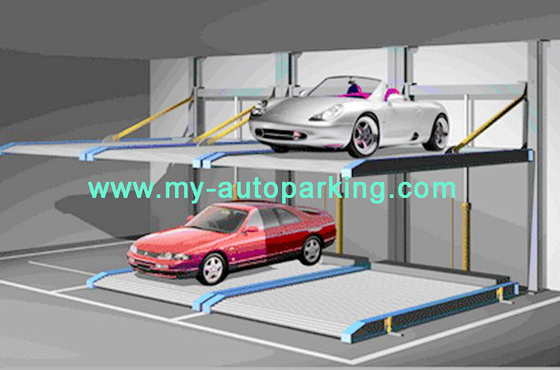

The equipment is designed with 2 levels and multi-bays. There is an empty car space for exchanging space for other cars. The bottom level cars can move horizontally, while the top level can move only vertically. When the car loading pallet reaches the ground, the car can be driven in or out easily.



Characteristics:

Take full use of land to raise more parking spaces;

Reliable hydraulic fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.



Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.



Adapted places

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...



Online video link

https://youtu.be/thBwy0HLdHQ (same working principle)



Photos:

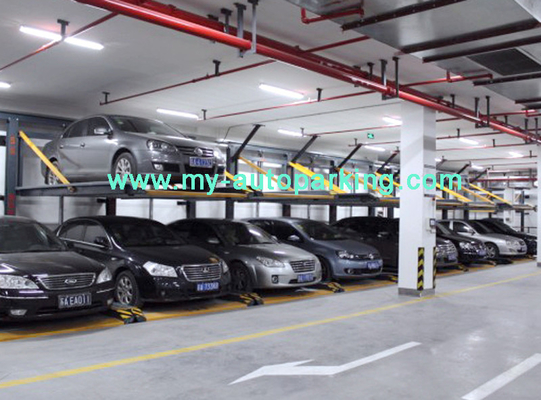

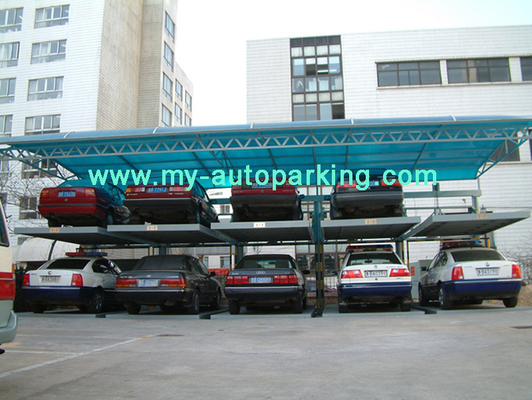

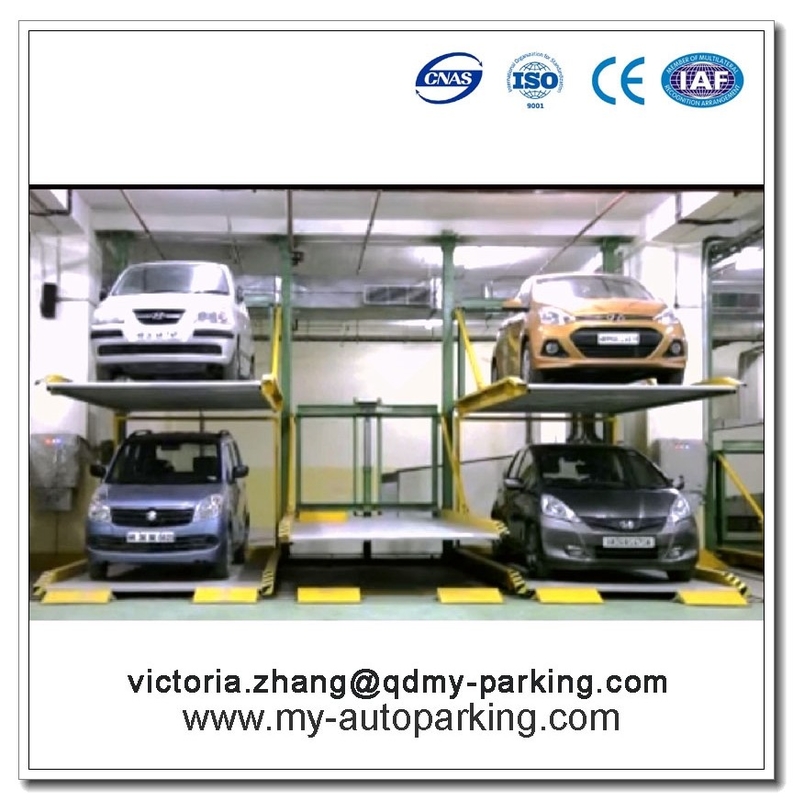

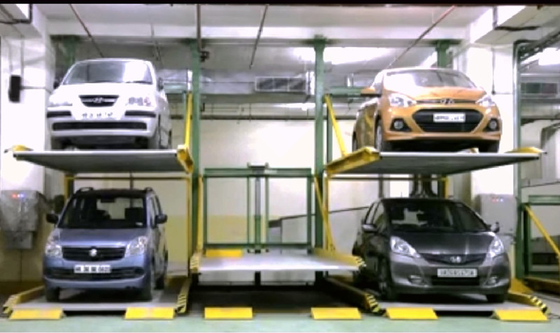

Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines

Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines



Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines



Hydraulic Smart Puzzle Parking System Multi-level Auto Parking Machines



Remarks:



Please send us your land layout,  our engineer will make design for your parking lot.



Online Video Show:

https://youtu.be/tOeqOt5DGtA



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 16 sets can be loaded into 1x40'open top container;
---The HS code is 84289020

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
