PSH2, PSH3, PSH4, PSH5, PSH6, PSH7, PSH8,
|Type||Hydraulic Puzzle Car Parking System (2-12 Levels )|
|Mode of Operations||LCD/IC card/Manual|
|Car Capacity||≤2000kgs; ≤2500kg|
|Mode of drive||Hydraulic+Steel Rope|
|Car Size (L×W×H)||5000mm×1850mm×1550mm; 5000mm×1850mm×2050mm|
|Lifting speed||4-22.5 KW 8-42m/min|
|Safeguard device||Whole protection and anti-falling frame device|
|Work Noise||< 65dB ( A )|
(Customized for different countries' demand)
|Maximum Working Pressure||16 MPa|
|Malfunction Indication||Fault diagnosis by computer, liquid crystal display|
|Treatment||Spray Zinc firstly and then Spray-paint second time (Twice)|
Red, Blue, Grey, Yellow etc. ( customized
according to user demand )
|Certification||ISO9001 and CE|
1. Motor + Chain + Car Loading Pallet
2. Motor + Steel Rope + Car Loading Pallet
3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet

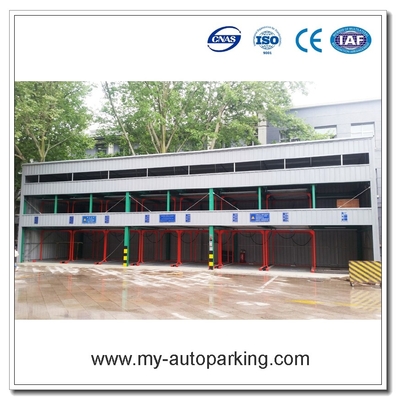

The equipment is designed with multi-levels and multi-columns smart puzzle parking system. It is designed with several empty spaces for exchanging spaces for other vehicles in each PLC unit. All spaces can move vertically or horizontally by the drive of hydraulic except the space in the top level. The top level cars can only move vertically. When a car needs to park or release, all spaces under this car will move automatically to form a free channel under this space, in this case, the space will go up and down freely. When it reaches the ground, the car will be driven out and in easily.
Take full use of land to raise more parking spaces;
Reliable hydraulic fast drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC micro-controller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony with surrounding environment.
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...
Online video link:
Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you!
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
