Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

China Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift supplier

Large Image :  Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO & CE
Model Number: QDMY-SJG

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $6000-10000/Per set
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, L/C, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detailed Product Description

Product Specifications:


Brand Name STMY
Model No. QDMY-SJG
1 level above ground, 1 level underground in a pit
Type Pit design scissor parking lift for 2 cars
Mode of Operations Manual buttons/Keys
Car Capacity                                            ≤2000kgs; 3000kg; 3500kg (Customized)
Mode of drive Hydraulic
Car Size (L×W×H) 5000mm×1850mm×1550mm;
5000mm×1850mm×2050mm; (Customized)
Platform Size (LxW) 5500mm x 2800mm (Customized)
Lifting Height 2200mm (Customized)
Safeguard device Whole protection and anti-falling hook device
Lifting Speed 4-6m/min
Stop at any height Yes, can be set
Work Noise < 60dB ( A )
Electricity 110v 220V/240V/380V
(customized for different country)
Motor Power 5.5-7.5KW
Maximum Working Pressure 16 MPa
HS Code 84289020
Surface Treatment High-grade anti-corrosion paint
Color Red, Blue, Grey, Yellow etc.
(customized according to user demand )
Certification ISO9001 and CE



Actuating Device:
Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform


Working Principle:

This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level,
the user can pick or park his car easily.


Characteristics:

  • Take full use of land to raise more parking spaces;
  • Reliable hydraulic drive modes;
  • A whole system for safety protection for cars or personals;
  • Saving energy and environmental protection;
  • Simple operated with manual buttons and keys;
  • Optional color can be easily in harmony with surrounding environment;
  • The top level may be decorated with grass or floor tiles to harmony with surrounding building.
  • No influence to building sharing light


Online Video Show:
http://youtu.be/vTbBz_gM3pI

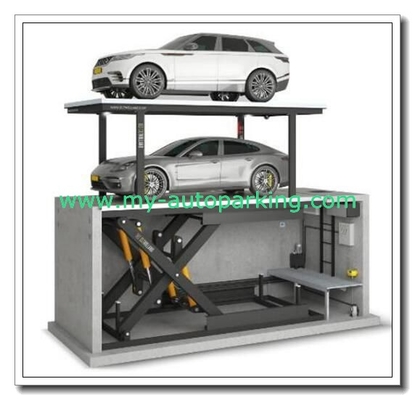

Pictures:

Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift
Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

Sample Drawings:
Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift

Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift


Remark: The lifting table size, car weight, lifting height can be customized according to customers' request.


Company Profile:
Our company is a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.

Here below are other main products of our company:
Pit Design Scissor Parking Lift/Double Parking Car Lift/ 2 Level Parking Lift/ Car Stacker Pit/ Car Underground Lift
