Home ProductsFour Post Double Wide Parking Lift

On Sale! 4 Post Car Lifts Four Post Parking Lift Vertical Parking System Stack Parking

On Sale! 4 Post Car Lifts Four Post Parking Lift Vertical Parking System Stack Parking

China On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking supplier

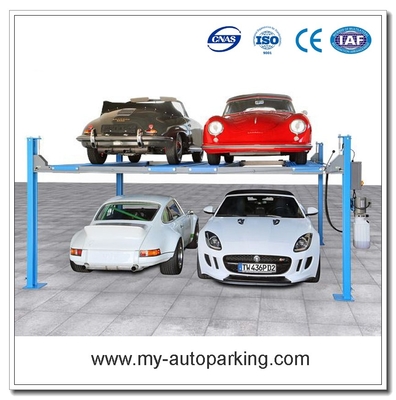

Large Image :  On Sale! 4 Post Car Lifts Four Post Parking Lift Vertical Parking System Stack Parking

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: QDMY-608D

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $2400-2800
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping
Supply Ability: 1000 sets/month
Detailed Product Description
Product Name: Stack Parking

Product Specifications:


Brand Name STMY
Model No.

 QDMY-608D

Type Four Post Double Wide Car Parking Lift for 4 cars
Mode of Operations Manual buttons / Keys
Car Capacity

 ≤1600kgs (upper level)
 ≤2000kgs (bottom level)

Mode of drive

 Hydraulic

Car Size (L×W×H)

 5000mm×1850mm×1550mm; (upper level)
 5000mm×1850mm×1950mm; (bottom level)

Lifting Height

 2000mm.

Warning device

 Yes
Safeguard device Hydraulic whole protection and anti-fall lock devices
Rise Time 50s
Fall Time 40s
Work Noise < 60dB ( A )
Voltage

 110V/220V/240V/380V (customized)

Motor Power 2.2KW
Maximum Working Pressure 16 MPa
HS Code 84254290
Modes of operation

 High-grade anti-corrosion paint

Color

 Black, Red, Blue, Grey, Yellow etc. ( customized
 according to user demand )

Certificate ISO9001 and CE


Working Principle:
This four post double lift including 4 car spaces. The upper level two car spaces are united as a whole unit and can be lifted up and down together. The bottom level cars can go in and out directly. When the spaces in the bottom level are spared, the spaces in the upper level will be lifted down to ground. Then the cars will go out and in freely.

Description:
1. Good choice for parking and simple repair
2. Hydraulic driven, cable lifting system
3. Manual or electric single point release
4. Automatic lock system ensure safety in different heights
5. Maintenance free load bearing
6. Immovable runway
7. Stop blocks in all posts for added safety
8. Moveable drip trays prevent pollution of vehicle on floor
9. Caster kit for moving the lift easily
10.Mold machining through the whole process so that the parts are universal and interchangeable
11.120% capacity Dynamic load text and 150% static load test
12.Italian oil seal to make sure no oil leakage
13.Electromagnetic valve with urgent manual drop function
14.Optional Manual pump for lock release in case of power off.
15.Optional 24V Control box and Electromagnetic valve

Pictures:

On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking
On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking
On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack ParkingOn Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking

On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking

On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking

On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking

Structure and Dimensions:
On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking
Package and Shipping Method:
On Sale! 4 Post Car Lifts Four Post Parking Lift  Vertical Parking System Stack Parking


FAQ

 1.  What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2.   What payment term can you accept?
----Often we accept TT or LC.  For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...

3. How about the loading information and HS Code?

---For this model, 16 sets can be loaded into 1x40'GP container;
---The HS code is 842542900

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
