Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

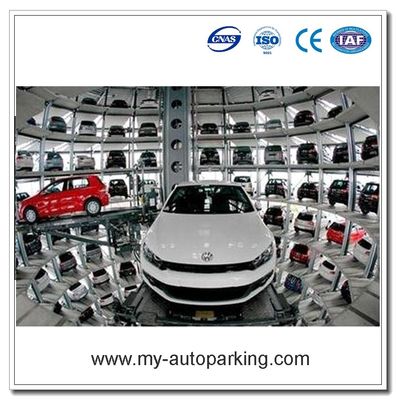

Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer

China Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer supplier

Large Image :  Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO90001 & CE
Model Number: STMY-RP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: $6000-8000
Packaging Details: Standard Export Package
Delivery Time: 30-60 days
Payment Terms: 30%TT in advance, 70%TT before shipping, T/T, L/C, D/A, D/P
Supply Ability: 5000 car slots / month
Contact Now
Detailed Product Description
Name: Round Parking Garage

Product Specifications:

Brand Name  STMY
Model No.  QDMY-RP
Product Name

 PLC Controlled Ring Type Automated Parking System

Mode of Drive  Motor+Hydraulic+Steel Rope
Mode of Operation

 Manual Buttons/ IC Cards/Touch Screen

Car Capacity

 ≤2350kgs

Car Size  (L×W×H)

 5300mm×1900mm×1550mm

 5300mm×1900mm×2050mm

Lifting / Sliding Speed

 30kw  Max 45m/min  / 2.2KW 3.0rpm

Rotation Speed

 1.5kw 40m/min
Devices

 Entrance observation mirror;

 Voice prompts;

 LED access display board;

Exchange Method  Comb carrier or Clip wheel carrier
Layout Types

 All above the ground;

 Half above ground and half underground;

 All underground;

Work Noise  < 65dB ( A )
Voltage

 110v/220V/240V/380V/415V

  (Customized for different country's demand)

Certificate  ISO9001 and CE
Maximum Working Pressure                 16 MPa
Malfunction Indication  Fault diagnosis by computer, liquid crystal display
Treatment

 Galvanized treatment and high-grade anti-corrosion paint

Color

 Green Blue, Grey, Yellow etc.

 (Can make according to user' sdemand )

HS Code  842890200



Actuating Device:

Motor + Hydraulic Pump Station  + Steel Rope



Working Principle:

The garage is a cylinder or regular polygon layout, the structure is divided into inner and outer cylinder. The inner cylinder is for the hoistway, integrated lifting platform, rotary system, leveling system and carrier. The outer cylinder is for car berths radially arranged. Each floor can be set 6-12 parking spaces. Entrance and exit room can be set flexible in the ground floor or other floors for one or more than one; can be combined use with elevator. When parking a car, the carrier will carry the car from the entrance room to lifting platform, the lifting and rotation process are synchronization completed in hoisway and arrive to the designed car berth.



Characteristics:

Drive mode: Large hydraulic pulley drive, hydraulic pump system using pump stations, pumps can be shared and backup for use. Low noise, high efficiency, safe and reliable.

Exchange Form:Using comb carrier or clip wheel carrier;

Layout form:Can be arranged for the above-ground type, half-ground half-underground type, all-underground type.

Equipped with entrance observation mirror, voice prompt, LED access display and so on.



Adapted places

Outdoor multi-storey garage, indoor concrete shaft hoistway garage



Photos:

Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer







Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer

Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Round Parking Garage in Chicago Automated Car Parking System Made in China Top Manufacturer



Remarks:



1) The garage can be installed above ground, half above ground, or all underground,   can be designed maxium 10 floors;

2) The garage can be all steel structure, or mixed structure with concrete shaft. (It's up to customer to choose);

3) Please send us your land layout,  our engineer will make design for your parking lot.



Online Video Show:

https://youtu.be/tOeqOt5DGtA



FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.

3. How about the loading information and HS Code?

---For this model, 16 sets can be loaded into 1x40'open top container;
---The HS code is 842542900

4. How about the lead time?
---30 to 60 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?
--We will send 2 engineers to your country to guide the installation, commissioning, training your staff.
