Payment & Shipping Terms:
|Name:||Round Parking Garage|
PLC Controlled Ring Type Automated Parking System
|Mode of Drive||Motor+Hydraulic+Steel Rope|
|Mode of Operation||
Manual Buttons/ IC Cards/Touch Screen
|Car Size (L×W×H)||
Lifting / Sliding Speed
|30kw Max 45m/min / 2.2KW 3.0rpm|
Entrance observation mirror;
LED access display board;
|Exchange Method||Comb carrier or Clip wheel carrier|
All above the ground;
Half above ground and half underground;
|Work Noise||< 65dB ( A )|
(Customized for different country's demand)
|Certificate||ISO9001 and CE|
|Maximum Working Pressure||16 MPa|
|Malfunction Indication||Fault diagnosis by computer, liquid crystal display|
Galvanized treatment and high-grade anti-corrosion paint
Green Blue, Grey, Yellow etc.
(Can make according to user' sdemand )
Motor + Hydraulic Pump Station + Steel Rope

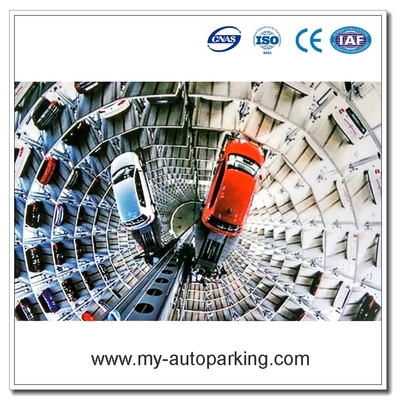

The garage is a cylinder or regular polygon layout, the structure is divided into inner and outer cylinder. The inner cylinder is for the hoistway, integrated lifting platform, rotary system, leveling system and carrier. The outer cylinder is for car berths radially arranged. Each floor can be set 6-12 parking spaces. Entrance and exit room can be set flexible in the ground floor or other floors for one or more than one; can be combined use with elevator. When parking a car, the carrier will carry the car from the entrance room to lifting platform, the lifting and rotation process are synchronization completed in hoisway and arrive to the designed car berth.
Drive mode: Large hydraulic pulley drive, hydraulic pump system using pump stations, pumps can be shared and backup for use. Low noise, high efficiency, safe and reliable.
Exchange Form:Using comb carrier or clip wheel carrier;
Layout form:Can be arranged for the above-ground type, half-ground half-underground type, all-underground type.
Equipped with entrance observation mirror, voice prompt, LED access display and so on.
Outdoor multi-storey garage, indoor concrete shaft hoistway garage
1) The garage can be installed above ground, half above ground, or all underground, can be designed maxium 10 floors;
2) The garage can be all steel structure, or mixed structure with concrete shaft. (It's up to customer to choose);
3) Please send us your land layout, our engineer will make design for your parking lot.
Online Video Show:
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.
Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.
If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.
