Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System

Good quality Two Post Tilting Parking Lift for sales
Good quality Two Post Tilting Parking Lift for sales
I'm Online Chat Now

Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System

China Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System supplier

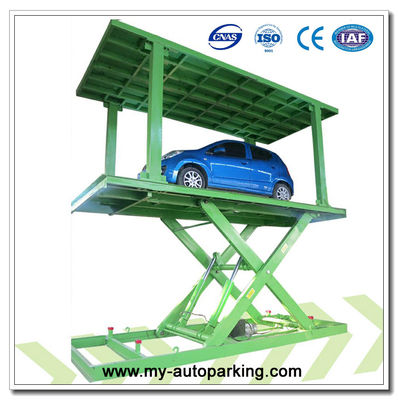

Large Image :  Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System

Product Details:

Place of Origin: Qingdao, China
Brand Name: STMY
Certification: ISO & CE
Model Number: QDMY-SJG

Payment & Shipping Terms:

Minimum Order Quantity: 1-3 Sets
Price: $4000-7000/ per car space
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: 30%TT in advance, 70%TT before shipping, , L/C, Western Union, MoneyGram
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description

Product Specifications:



Brand Name  STMY
Model No.

 QDMY-SJG

 1 level above ground, 1 level  underground in a  pit

Type    Double deck scissor parking lift
Mode of Operations                                      Manual buttons/Keys
Car Capacity

 ≤2000kgs; 3000kg; 3500kg (Customized)

Mode of drive

 Hydraulic

Car Size  (L×W×H)

 5000mm×1850mm×1550mm;

 5000mm×1850mm×2050mm; (Customized)

Platform Size (LxW)

 5500mm x 2800mm (Customized)

Lifting Height

 1600-2200mm (Customized)
Safeguard device  Whole protection and anti-falling hook device
Lifting Speed  4-6m/min
Stop at any height  Yes, can be set
Work Noise  < 60dB ( A )
Electricity

110v 220V/240V/380V

(customized for different country)

Motor Power  5.5-7.5KW
Maximum Working Pressure  16 MPa
HS Code  84289020
Surface Treatment

 High-grade anti-corrosion paint

Color

 Red, Blue, Grey, Yellow etc.

 (customized according to user demand )

Certification  ISO9001 and CE





Actuating Device:

Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform





Working Principle:



This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level,

the user can pick or park his car easily.





Characteristics:

  • Take full use of land to raise more parking spaces;
  • Reliable hydraulic drive modes;
  • A whole system for safety protection for cars or personals;
  • Saving energy and environmental protection;
  • Simple operated with manual buttons and keys;
  • Optional color can be easily in harmony with surrounding environment;
  • The top level may be decorated with grass or floor tiles to harmony with surrounding building.
  • No influence to building sharing light



Online Video Show:

http://youtu.be/vTbBz_gM3pI





Pictures:



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System



Sample Drawings:





Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System





Multi-Units:



Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System





Remark: The lifting table size, car weight, lifting height can be customized according to customers' request.





FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70% LC at sight.

3. How about the loading information and HS Code?

---For this model, usually 1-2 sets can be loaded into 1x20'GP container.
---The HS code is 84289020

4. How about the lead time?
---30 to 45 days (according to order quantity);

5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. How about the installation?
--This system is simple structure, we will send you the user manual, and you can install them easily.

8. Warranty Term?
--5 years for structure, and 12 months for electrical parts.



Company Profile:

We are a professional company including development, production, and sales, etc. , specialized in the car lift machine, automible parts, intelligent parking system, three-dimensional garage and other machinery products research. We have a skilled professional team and have the world class production lines including many sets of precision CNC processing equipment.

Our company is located in QingDao city of China. Since its establishment, we always adhere to the philosophy that "quality first, customer first, practical, and sincerity" , and adhere to the business purpuse that "deligent, high effciency, honesty, rigorous". With the good faith for this principle, we have established long-term cooperative relations with many domestic and overseas partners and companies. We will try our best to improve the products and make you investment to the Maximum profit.

If you are interested in our products, welcome you to visit our company website or wirte email to us in time, we are very glad to quote you our best reasonable price immediately and explain any details to you sincerely. Besides, we can also customize products according to your different requirement. We are always looking forward to the opportunnity to work with you, thanks.



Here below are other main products of our company:

Hot Sale! Double Deck Scissor 2 Level Parking Lift /Underground Double Parking Car Lift/ Car Parking System
